SELECT A DIAGRAM

01 - Cover Sheet

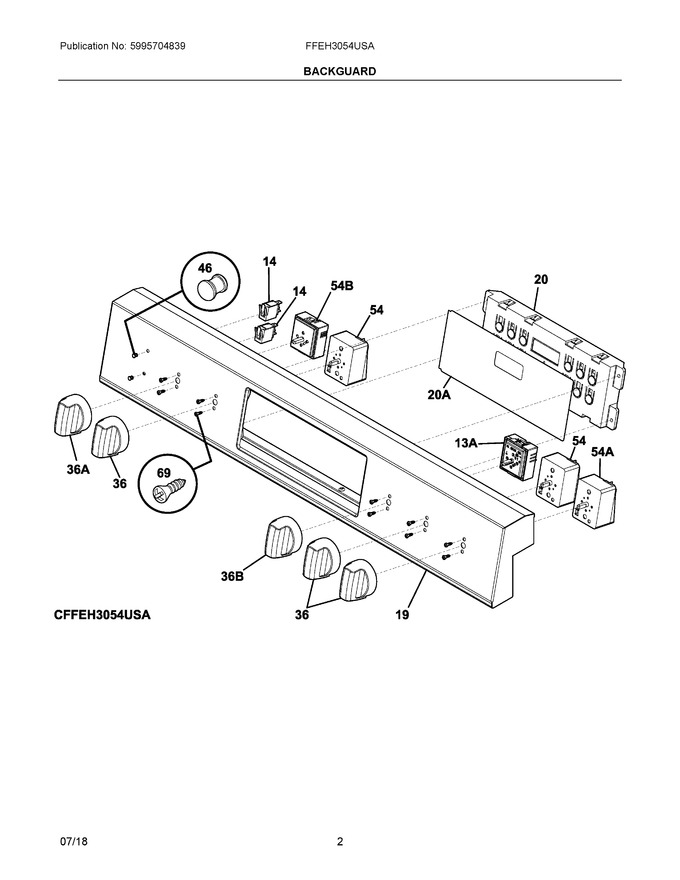

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
19	5304514178		Control Panel, Stainless			Immediately	$ 326.72
20	5304514108		Controller, Electronic, Oven, Es330			Immediately	$ 327.09
36	5304514116		Knob, Infinite Switch, Stainless, Single			Immediately	$ 51.40
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 93.53
20A	316419380		Overlay, Eoc, Black, Es330			Immediately	$ 39.61
36A	5304514117		Knob, Infinite Switch, Stainless, Dual			Immediately	$ 53.50
36B	5304514118		Knob, Infinite Switch, Stainless, Warm				$ 50.56
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
54B	316238202		Switch, Infinite Radian, Dual			Immediately	$ 142.75
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5304514141		Harness, Wiring, Backsplash				$ 163.47

    View Diagram in Separate Window       Print Part List
