SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

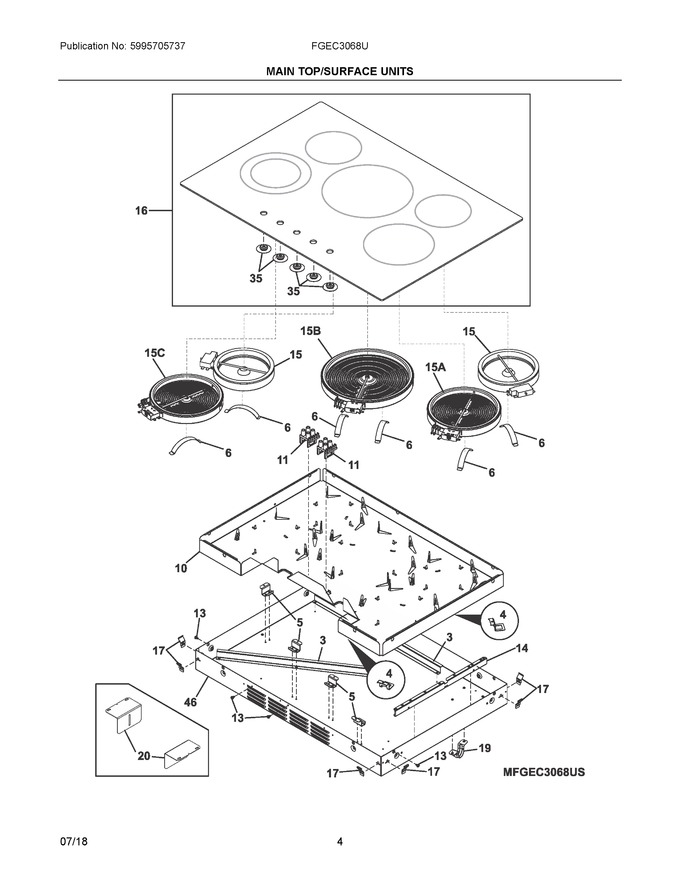

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	387683500		Support, Burner Box		Appelez-nous	-
4	387683300		Bracket, Surface Element			Immediately	$ 14.91
5	5304518258		Bracket, Support, Z Style		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 16.85
10	5304518263		Box, Support, Inner, Element		Appelez-nous	-
11	387812007		Light Assembly, Indicator, Hot Surface				$ 38.77
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.73
14	5304518260		Support, Beam		Appelez-nous	-
15	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)				$ 81.30
16	305638978		Maintop, Assembly, Black, W/5 Bushings   (Replaces: 305638977)			Immediately	$ 1,059.41
17	387174602		Bracket, Spring, Cooktop Mtg.				$ 6.30
19	318389600		Bracket, Conduit Mtg.				$ 14.18
20	5304538915		Bracket, Retainer, Main Top   (Replaces: 5304518261)			Immediately	$ 6.01
35	5304515130		Bushing, Knob, Sealing			Immediately	$ 101.28
46	5304518262		Box, Cooktop, Outer				$ 94.50
15A	8583740636383		Element, Surface, 7", 1800w   (Replaces: 374063622)			Immediately	$ 130.87
15B	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 240.18
15C	318198952		Element, Surface, Dual, 750/1800w			Immediately	$ 278.78
NI	131202300		Screw, (4)   (Replaces: 305376102)			Immediately	$ 14.96
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.58
NI	305309606		Screw, (2)				$ 12.60
NI	5304518264		Box & Wires Assy		Appelez-nous	-
NI	5304518271		Harness, Wiring, Main		Appelez-nous	-
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
