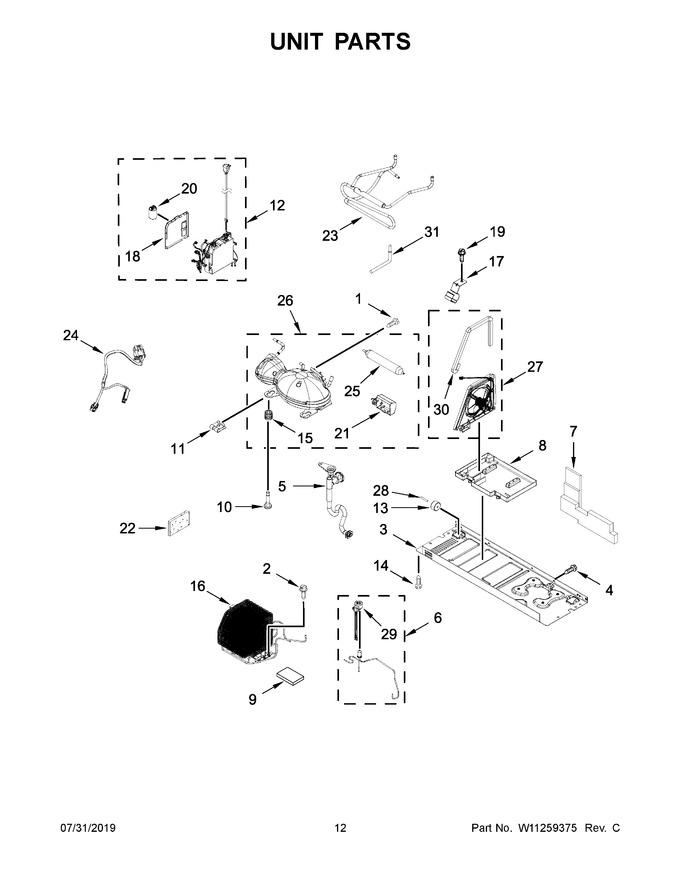

07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141625		Screw   (Replaces: W10141625)				$ 22.22
2	W10820084		Screw		Appelez-nous	-
3	W10658357		Baseplate				$ 82.28
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	W11745091		Assembly, Drain Extension   (Replaces: W10860180)				$ 77.32
6	W11575001		Assembly, 3 Way Valve   (Replaces: W11084143)				$ 111.47
7	W11688785		Pad, Sound   (Replaces: W10838081)				$ 76.85
8	W10877573		Tray, Evaporator				$ 160.69
9	W10884826		Grommet, Condenser		Appelez-nous	-
10	W10697007		Bolt		Appelez-nous	-
11	W10697017		Clip, Retaining		Appelez-nous	-
12	W11336586		Assembly, Orion Box (include Wiring Harness For Compressor And Power Cord)   (Replaces: W11124702)			Immediately	$ 448.33
13	W10774846		Roller				$ 90.76
14	12992101		Screw		Appelez-nous	-
15	W10836504		Grommet, Compressor				$ 18.25
16	W11548259		Condenser   (Replaces: W10658301)			Immediately	$ 195.99
17	W10391376		Bracket, Valve				$ 35.03
18	W10767831		Cover, Housing		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	W10792503		Filter, Emi				$ 95.69
21	W11592194		Cover, Terminal   (Replaces: W10701009)				$ 49.90
22	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
23	W11099736		Assembly, Suction Tube   (Replaces: W10848691)				$ 72.62
24	W10858511		Harness, Unit (condenser Fan)				$ 147.90
25	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
26	W11592010		Compressor   (Replaces: W11107278)			Immediately	$ 1,119.99
27	W11024494		Assembly, Condenser Fan   (Replaces: W10883082)				$ 199.57
28	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
29	W11429989		Coil, 3 Way Valve   (Replaces: W10709318)			Immediately	$ 215.28
30	W10683708		Gasket, Condenser Fan		Appelez-nous	-
31	W11323726		Tube, Process   (Replaces: W10735062)				$ 40.49
NI	978026		Valve, Access (5/16")			Immediately	$ 134.49
NI	N/P		Refrigerant Charge 4.50 Oz. (r-134a)		Appelez-nous	-
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 137.25
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
