01 - Cover Sheet

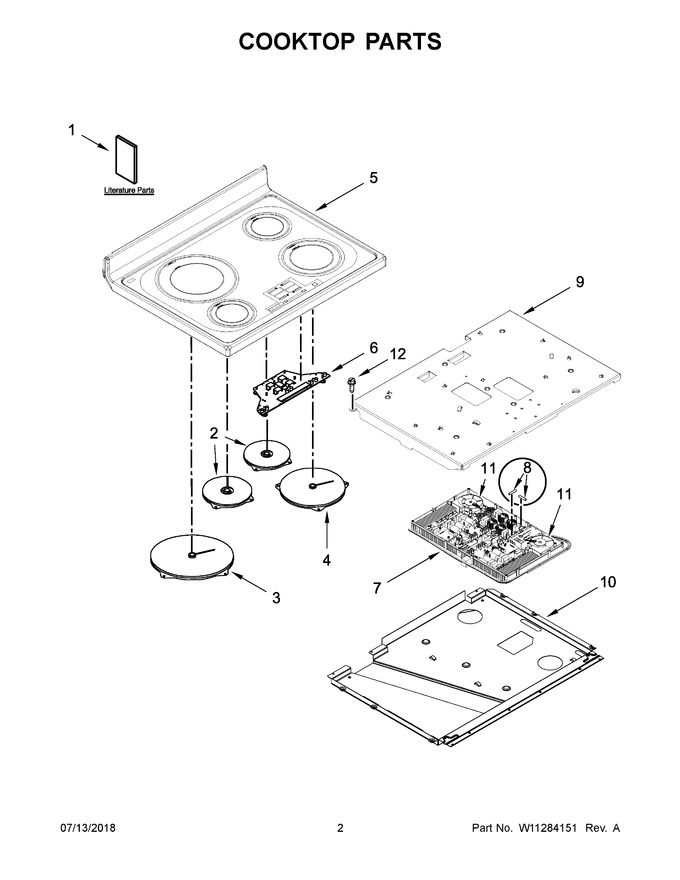

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694057		Guide, Use & Care		Appelez-nous	-
2	WPW10410580		Hotplate (left Front & Right Rear)   (Replaces: W10410580)				$ 255.85
3	WPW10460400		Hotplate (left Rear)   (Replaces: W10460400)				$ 302.57
4	WPW10536262		Hotplate (right Front)   (Replaces: W10536262)				$ 253.13
5	W10777613		Cooktop (stainless)   (Replaces: W10687992)				$ 715.44
6	W10818273		Control, Ui   (Replaces: W10808236)			Immediately	$ 571.68
7	W10873518		Assembly, Induction Module				$ 493.03
8	WPW10328492		Fuse   (Replaces: W10328492)			Immediately	$ 102.98
9	W10454938		Plate, Induction				$ 346.14
10	W10564364		Assembly, Induction Pan				$ 346.34
11	W10328381		Fan, Cooling (left)			Immediately	$ 360.00
12	4450800		Screw, Grounding				$ 13.47
11A	W10328378		Fan, Cooling (right)				$ 362.13
1A	W10694066		Instructions, Installation		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11171882		Harness, Main		Appelez-nous	-
NI	W11172529		Harness, Signal			Immediately	$ 123.12
NI	W11172531		Harness, Sensor & Locks				$ 119.20
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 8.87

    View Diagram in Separate Window       Print Part List
