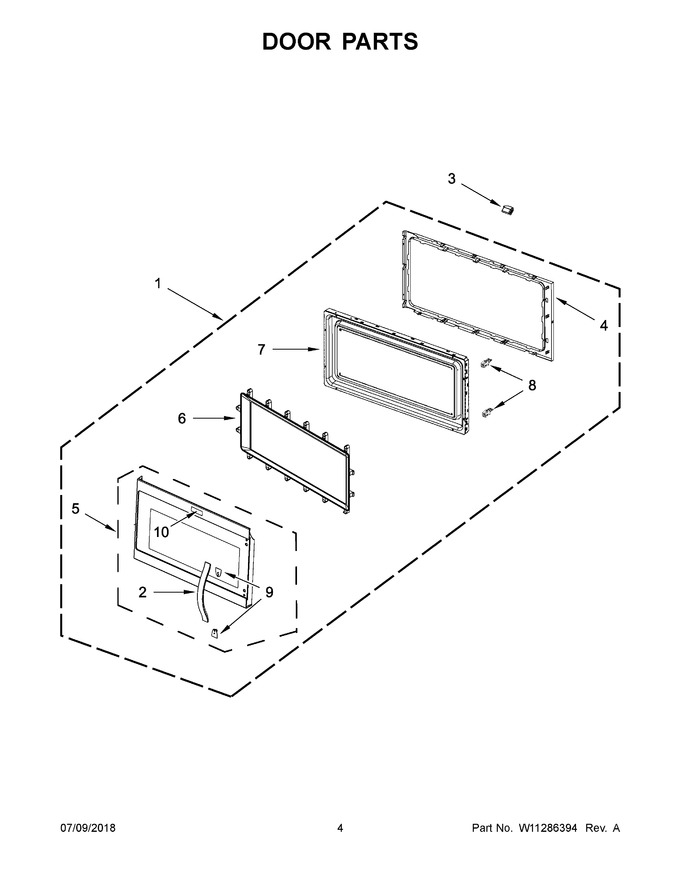

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11038380 | Door, Complete (black Stainless) |
|
$ 360.50 | |||||
| 2 | W11259917 | Handle, Door (Replaces: W10603749) |
|
$ 172.67 | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 22.65 | |||||
| 4 | W10647772 | Frame, Inner |
|
$ 100.31 | |||||
| 5 | W11036999 | Assembly, Door Frame (black Stainless) |
|
$ 389.63 | |||||
| 6 | W10514243 | Plate, Steam Protection |
|
$ 79.07 | |||||
| 7 | W10893422 | Foil, Door |
|
$ 266.28 | |||||
| 8 | W10740455 | Hook, Door |
|
Immediately | $ 56.20 | ||||
| 9 | W11590575 | Cushion, Handle (Replaces: W10540736) |
|
$ 23.59 | |||||
| 10 | W10909682 | Nameplate (Replaces: W10754513) |
|
Immediately | $ 76.20 |
