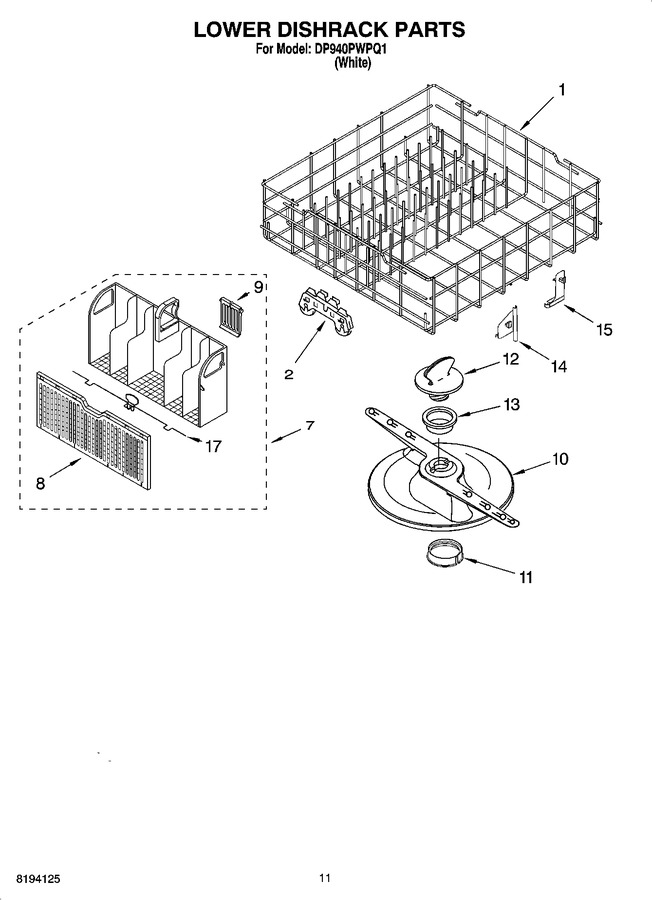

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161215		Dishrack, Lower   (Replaces: 8539225)				$ 198.12
2	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
7	W11027965		Silverware Basket Asembly   (Replaces: 8562001)				$ 237.93
8	8519540		Door, Silverware Basket		Appelez-nous	-
9	8562000		Lid, Silverware Basket		Appelez-nous	-
10	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 127.32
11	WP3376846		Seal, Lower Sprayarm   (Replaces: 3376846)			Immediately	$ 10.12
12	WP8268873		Nut, Sprayarm   (Replaces: 8268873)			Immediately	$ 7.57
13	WP9742946		Bearing, Radial   (Replaces: 9742946)			Immediately	$ 26.80
14	8268867		Clip, Silverware Basket (left)				$ 44.85
15	8268868		Clip, Silverware Basket (right)				$ 49.81
17	8561999		Latch Assembly		Appelez-nous	-
	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	675778		White		Appelez-nous	-
	WP300096		Air Gap Kit Prevents Back Siphoning Of Contaminated Water Into Dishwasher)   (Replaces: 300096)				$ 78.44
	677967		Do-it Yourself Manual		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 94.14
	799340		Paint, Touch-up (1 Qt.) (black (uncut))		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	4317925		Side Panel Kits (white)		Appelez-nous	-
	4318050		Heavy Duty Drain Hose				$ 23.68
	8531858		12 Foot				$ 31.45
	4317856		Conversion Kit Portable To Undercounter (black)		Appelez-nous	-
