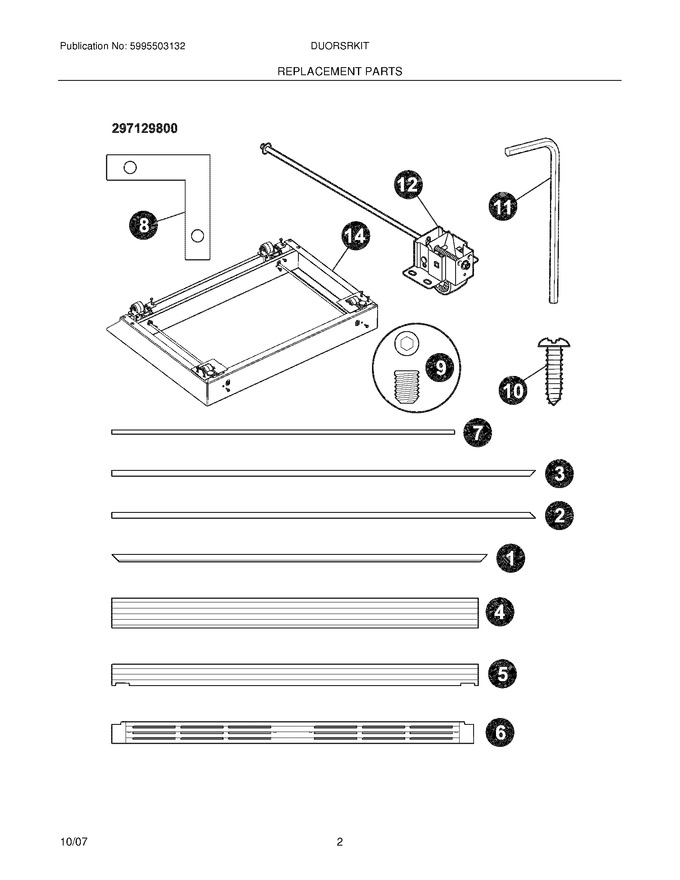

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297032602 | Trim,collar ,top |
|
- | |||||
| 2 | 297032702 | Trim,collar ,tall ,rh |
|
- | |||||
| 3 | 297032703 | Trim,collar ,tall ,lh |
|
- | |||||
| 4 | 297032802 | Grill,top |
|
- | |||||
| 5 | 297032903 | Grill,bottom |
|
- | |||||
| 6 | 297094700 | Kickplate Assembly,tall |
|
- | |||||
| 7 | 297034800 | Spacer,trim ,black ,center |
|
$ 176.72 | |||||
| 8 | 297034600 | Bracket,corner ,(2) |
|
$ 49.90 | |||||
| 9 | 297034700 | Screw,set ,no.10-32 X .25 ,(4) |
|
$ 32.70 | |||||
| 10 | 5303302714 | Screw,no.8-18 X .75 |
|
- | |||||
| 11 | 5304460044 | Key,hex ,3/32`` X 2-3/32`` |
|
- | |||||
| 12 | 297137300 | Roller,adjustable ,front ,(2) |
|
$ 140.85 | |||||
| 14 | 297112700 | Riser,assembly |
|
- |
