SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Tub


03 - Door And Toe Panel

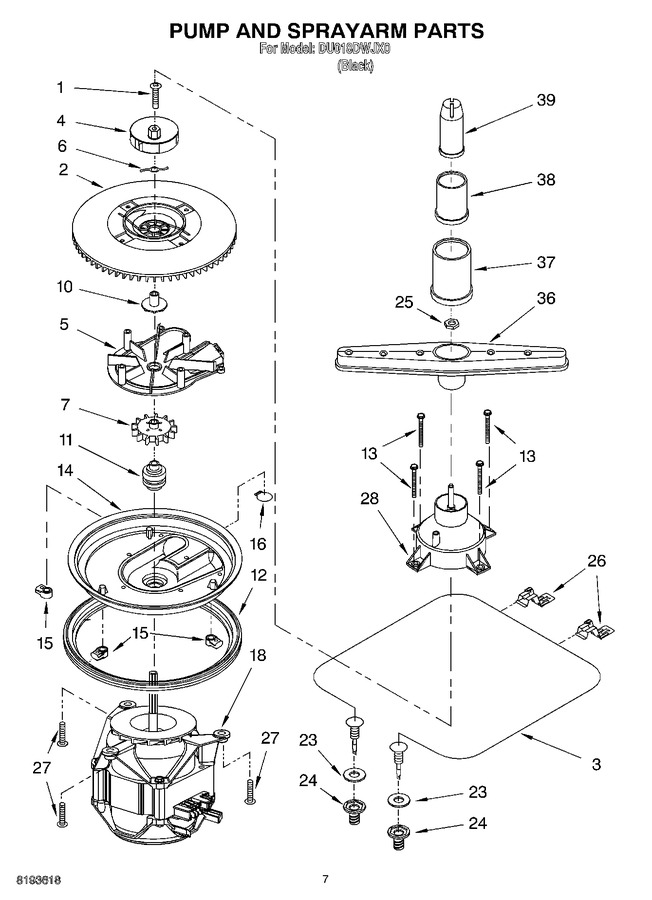

04 - Frame


05 - Pump And Sprayarm


06 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193600		Screw		Appelez-nous	-
2	8193614		Cover, Pump Housing		Appelez-nous	-
3	965534		Heater		Appelez-nous	-
4	8193605		Upper Impeller		Appelez-nous	-
5	8193603		Cover, Volute		Appelez-nous	-
6	8193602		Macerator		Appelez-nous	-
7	8193604		Impeller, Lower		Appelez-nous	-
10	8193606		Slinger, Pump		Appelez-nous	-
11	8193607		Sleeve & Seal Assembly		Appelez-nous	-
12	8193608		Gasket, Pump		Appelez-nous	-
13	965536		Screw, Pump Housing		Appelez-nous	-
14	8193609		Housing, Pump		Appelez-nous	-
15	8193610		Retainer, Sump		Appelez-nous	-
16	8193611		Valve, Check		Appelez-nous	-
18	8193612		Motor Assembly		Appelez-nous	-
23	965541		Washer, Insulating		Appelez-nous	-
24	965542		Nut, Heater		Appelez-nous	-
25	965548		Nut, Spray Arm		Appelez-nous	-
26	8193601		Bracket, Heater		Appelez-nous	-
27	965543		Screw, Motor Mounting		Appelez-nous	-
28	8193613		Diffuser		Appelez-nous	-
36	965545		Sprayarm, Lower		Appelez-nous	-
37	965462		Base, Tower		Appelez-nous	-
38	965463		Middle, Tower		Appelez-nous	-
39	965546		Tip, Tower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
