SELECT A DIAGRAM

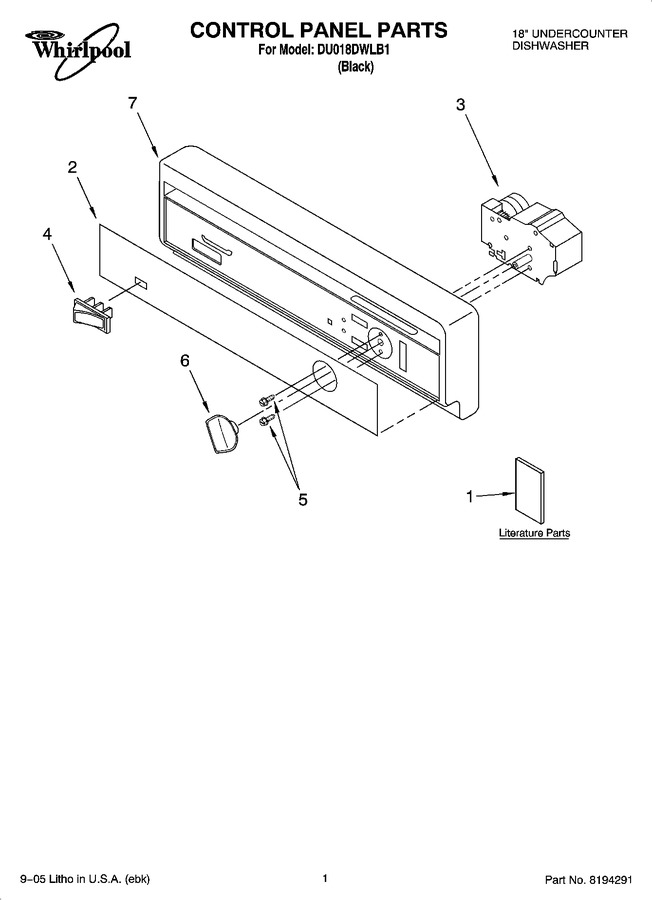

01 - Control Panel Parts


02 - Tub Parts


03 - Door And Toe Panel Parts


04 - Frame Parts


05 - Pump And Sprayarm Parts


06 - Dishrack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8193831		Instructions, Installation		Appelez-nous	-
1	8193854		Guide, Use & Care		Appelez-nous	-
1	8194292		Guide, Energy		Appelez-nous	-
2	8193587		Insert, Control Panel		Appelez-nous	-
3	8193972		Timer		Appelez-nous	-
4	8193589		Switch, Rocker		Appelez-nous	-
5	965485		Screw, Timer		Appelez-nous	-
6	965486		Knob, Timer		Appelez-nous	-
7	965568		Panel, Control (also Order Item 2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
