SELECT A DIAGRAM

01 - Door And Panel Parts

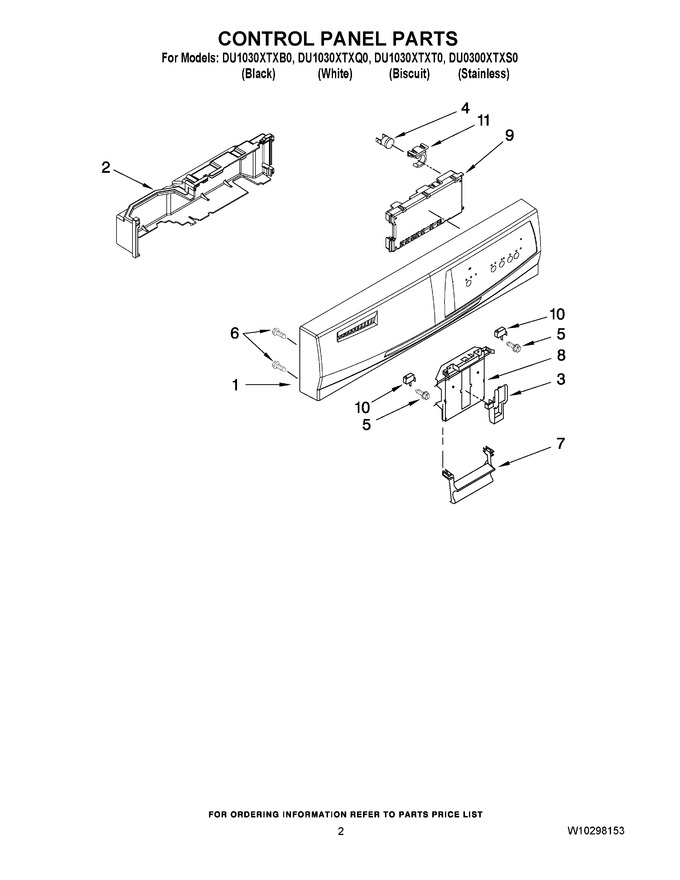

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10275136		Console Assembly (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10275137		Console Assembly (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	W10275135		Console Assembly (includes Active Overlay & Insert) (black)		Appelez-nous	-
2	W10158350		Cover Control Shield Assembly				$ 26.50
3	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
4	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
5	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
6	WPW10348413		Screw   (Replaces: 3400815)			Immediately	$ 8.41
7	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
7	8534986		Handle, Latch (biscuit)				$ 89.73
7	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
8	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
9	W11202742		Control, Electronic   (Replaces: W10254542)				$ 186.31
10	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30
11	8546546		Clip, Bi-metal				$ 7.82
