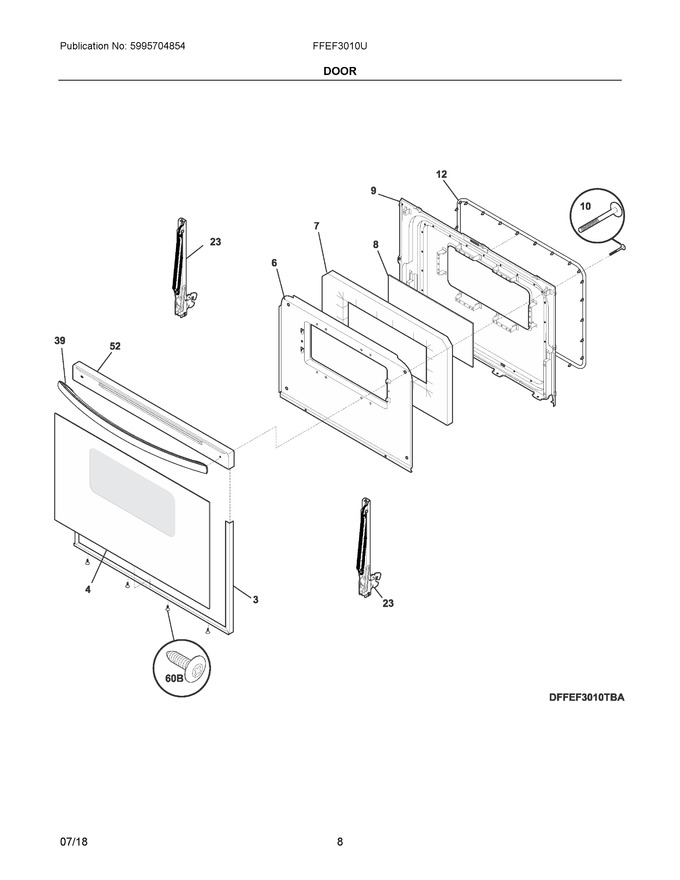

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935380 | Trim Kit-door, 3 Sided, White, W/tape |
|
$ 85.84 | |||||
| 4 | 5303935204 | Glass, Door Kit, White, Outer, W/foil Tape |
|
$ 504.79 | |||||
| 6 | 316222703 | Shield, Wool, Oven Door |
|
$ 87.41 | |||||
| 7 | 316236802 | Insulation, Oven Door |
|
$ 41.63 | |||||
| 8 | 5304506004 | Glass, Oven Door, Inner |
|
$ 53.81 | |||||
| 9 | 316230634 | Liner, Oven Door |
|
$ 163.47 | |||||
| 10 | 316278700 | Screw, 10-14 X 1.365", Handle Mtg. (Replaces: 316433301) |
|
Immediately | $ 30.55 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 169.37 | ||||
| 23 | 316575921 | Hinge, Oven Door, Orange |
|
Immediately | $ 47.19 | ||||
| 39 | 5304522047 | Handle, Door, White (Replaces: 5304507385) |
|
Immediately | $ 136.25 | ||||
| 52 | 316491200 | Cap, Door Trim, White |
|
Immediately | $ 133.14 | ||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 11.13 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
