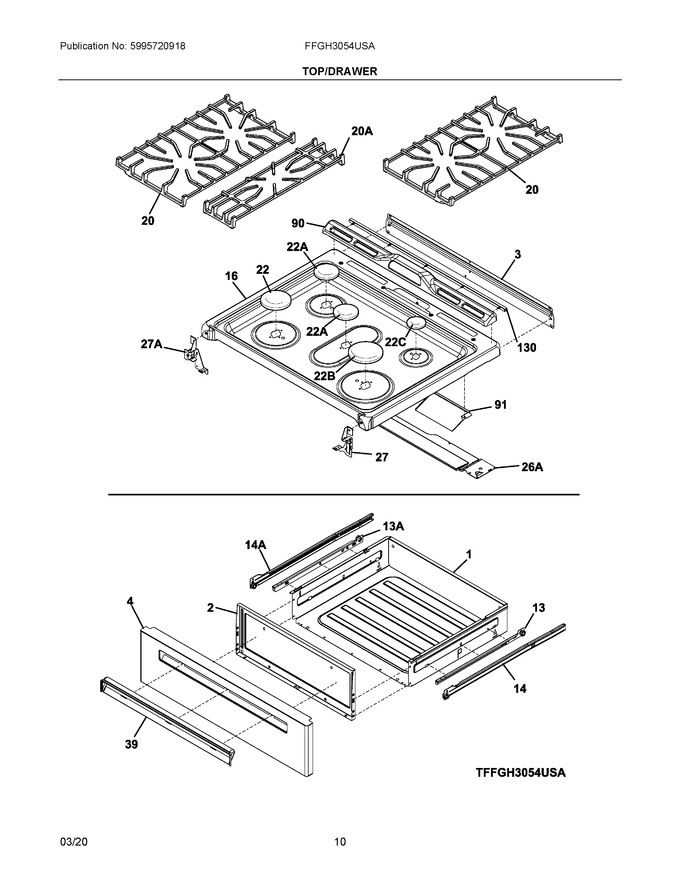

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408707)			Immediately	$ 122.90
2	5304527988		Liner, Drawer   (Replaces: 316403200)			Immediately	$ 29.49
3	5304514133		Shield, Rear Wall, Upper				$ 38.77
4	5304510527		Panel, Drawer, Stainless				$ 122.29
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
16	5304516831		Maintop, Assembly, Black				$ 173.51
20	5304518358		Grate, Burner, Black, Side, (2)				$ 131.45
22	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 15.17
39	5304511879		Handle Insert, Drawer				$ 74.43
90	5304514122		Trim, Vent, Black, Rear				$ 60.67
91	5304514181		Deflector, Moisture, (2)				$ 11.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 44.66
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
20A	5304518359		Grate, Burner, Black, Center				$ 133.14
22A	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22B	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
22C	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 15.17
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
