01 - Cover Sheet

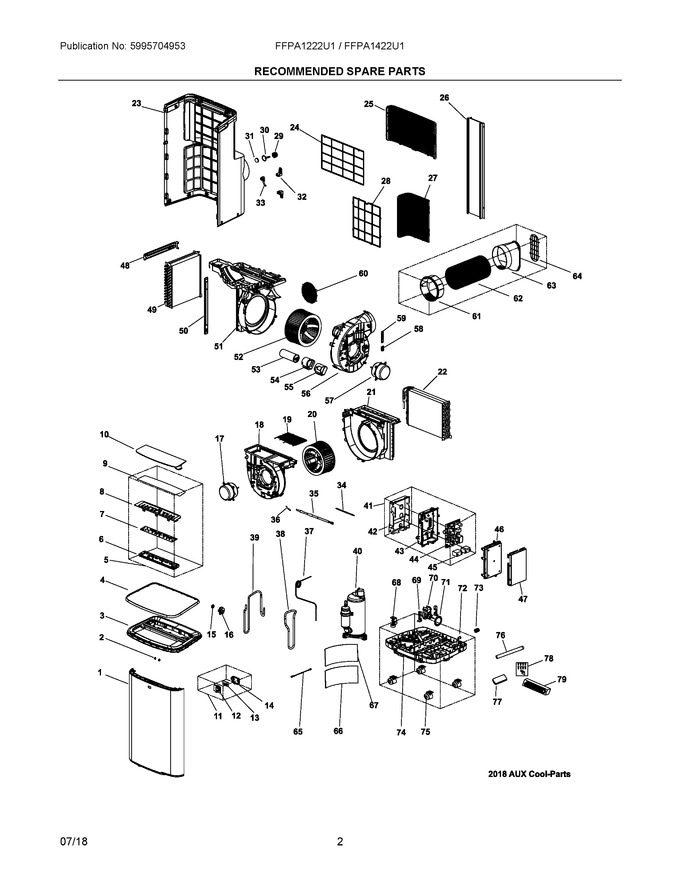

02 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304518095 | Front Panel |
|
- | |||||
| 2 | 5304518096 | Sleeve, Axle, (2) |
|
- | |||||
| 3 | 5304518097 | Cover, Top |
|
- | |||||
| 4 | 5304518098 | Trim, Decorative, Top |
|
- | |||||
| 5 | 5304518099 | Display Assembly, Complete, W/board-overlay |
|
$ 99.23 | |||||
| 6 | 5304518100 | Housing, Display Board |
|
- | |||||
| 7 | 5304518101 | Pc Board, Display |
|
$ 266.49 | |||||
| 8 | 5304518102 | Cover, Display Board |
|
- | |||||
| 9 | 5304518103 | Overlay, Display |
|
- | |||||
| 10 | 5304518104 | Louver, Air, Horizontal |
|
- | |||||
| 11 | 5304518174 | Signal Receiver, Assembly |
|
- | |||||
| 12 | 5304518186 | Cover, Signal Receiver |
|
- | |||||
| 13 | 5304518107 | Control, Signal Receiver |
|
- | |||||
| 14 | 5304518108 | Housing, Signal Receiver |
|
- | |||||
| 15 | 5304518109 | Gear, Step Motor |
|
- | |||||
| 16 | 5304518110 | Motor, Step |
|
- | |||||
| 17 | 5304518111 | Motor, Evaporator Fan |
|
- | |||||
| 18 | 5304518112 | Air Duct, Volute, Front |
|
- | |||||
| 19 | 5304518113 | Grille, Air Outlet |
|
- | |||||
| 20 | 5304518114 | Blower Wheel, Evaporator |
|
- | |||||
| 21 | 5304518115 | Air Duct, Volute, Rear |
|
- | |||||
| 22 | 5304518178 | Evaporator, Assembly |
|
- | |||||
| 23 | 5304518117 | Panel, Rear |
|
- | |||||
| 24 | 5304518118 | Air Filter, Evaporator |
|
- | |||||
| 25 | 5304518189 | Grille, Upper, Rear |
|
- | |||||
| 26 | 5304533753 | Slider Kit, Window (Replaces: 5304518120) |
|
$ 83.86 | |||||
| 27 | 5304518190 | Grille, Lower, Rear |
|
$ 19.85 | |||||
| 28 | 5304518122 | Air Filter, Condenser |
|
- | |||||
| 29 | 5304518191 | Cover, Drain |
|
- | |||||
| 30 | 5304518192 | Rope, Drain Cover |
|
- | |||||
| 31 | 5304518125 | Washer, Rubber |
|
- | |||||
| 32 | 5304518193 | Hook, Power Cord, (2) |
|
- | |||||
| 33 | 5304518127 | Power Cord, Electric, Service |
|
- | |||||
| 34 | 5304518128 | Sensor, Ambient Temp. |
|
- | |||||
| 35 | 5304518129 | Sensor, Evaporator Temp, Evaporator |
|
- | |||||
| 36 | 5304518130 | Clip, Sensor |
|
- | |||||
| 37 | 5304518179 | Tube Assembly, Capillary |
|
- | |||||
| 38 | 5304518132 | Tube Assembly, Discharge |
|
- | |||||
| 39 | 5304518133 | Tube Assembly, Suction |
|
- | |||||
| 40 | 5304518180 | Compressor, Assembly |
|
- | |||||
| 41 | 5304518135 | Control Box, Assembly, W/board-housing |
|
- | |||||
| 42 | 5304518136 | Shield, Control Box, Metal |
|
- | |||||
| 43 | 5304518137 | Housing, Main Control |
|
- | |||||
| 44 | 5304518138 | Pc Board, Main |
|
- | |||||
| 45 | 5304518139 | Capacitor, Fan Motor |
|
- | |||||
| 46 | 5304518140 | Cover, Control Box |
|
- | |||||
| 47 | 5304518141 | Shield, Box Cover, Metal |
|
- | |||||
| 48 | 5304518142 | Rail, Stregthening |
|
- | |||||
| 49 | 5304518177 | Condenser, Assembly |
|
- | |||||
| 50 | 5304518144 | Bar, Support |
|
- | |||||
| 51 | 5304518145 | Air Duct, Volute, Lower Rh |
|
- | |||||
| 52 | 5304518146 | Blower Wheel, Condenser |
|
- | |||||
| 53 | 5304518181 | Capacitor, Compressor |
|
- | |||||
| 54 | 5304518148 | Cover, Capacitor |
|
- | |||||
| 55 | 5304518149 | Shield, Capacitor Cover |
|
- | |||||
| 56 | 5304518150 | Air Duct, Volute, Lower Lh |
|
- | |||||
| 57 | 5304518151 | Motor, Condenser Fan |
|
- | |||||
| 58 | 5304518152 | Clamp, Power Cord |
|
- | |||||
| 59 | 5304518153 | Bracket, Grounding |
|
- | |||||
| 60 | 5304518154 | Grille, Exhaust Outlet |
|
- | |||||
| 61 | 5304518155 | Connector, Exhaust Hose |
|
$ 36.92 | |||||
| 62 | 5304518156 | Hose, Exhaust |
|
$ 36.92 | |||||
| 63 | 5304524281 | Nozzle, Exhaust Hose (Replaces: 5304518157) |
|
$ 40.58 | |||||
| 64 | 5304524282 | Grille, Rodent-resist (Replaces: 5304518158) |
|
$ 53.64 | |||||
| 65 | 5304518159 | Wire, Grounding, Compressor |
|
- | |||||
| 66 | 5304518160 | Insulation, Noise Reduction, Compressor |
|
- | |||||
| 67 | 5304518161 | Insulation, Noise Reduction, Outer |
|
- | |||||
| 68 | 5304518162 | Switch, Liquid Level |
|
- | |||||
| 69 | 5304518163 | Bracket, Splash Motor, (2) |
|
- | |||||
| 70 | 5304518164 | Motor, Splash |
|
- | |||||
| 71 | 5304518165 | Wheel, Splash Motor |
|
- | |||||
| 72 | 5304518166 | Stopper, Rubber |
|
- | |||||
| 73 | 5304518195 | Cover, Stopper |
|
- | |||||
| 74 | 5304518168 | Base Assembly, Chassis |
|
$ 106.32 | |||||
| 75 | 5304518169 | Castor, (4) |
|
$ 19.52 | |||||
| 76 | 5304518170 | Hose, Drain |
|
$ 11.68 | |||||
| 77 | 5304518171 | Remote Control |
|
$ 139.53 | |||||
| 78 | 5304518172 | Hardware Kit, W/safety Lock |
|
- | |||||
| 79 | 5304518173 | Sealing Kit |
|
- |
