SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

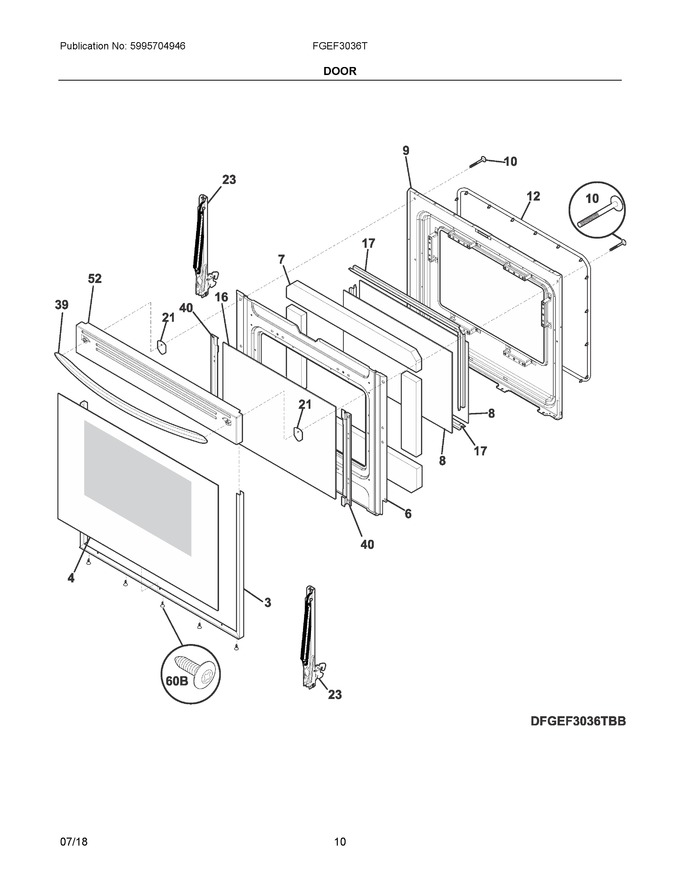

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 64.58
4	316350403		Glass, Door, Black, Outer				$ 209.76
6	316406328		Shield-wool   (Replaces: 316406312)				$ 96.90
7	316405600		Insulation, Oven Door				$ 85.05
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 163.47
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 30.55
12	316405000		Seal, Oven Door			Immediately	$ 199.08
16	316552801		Glass, Door, Airwash				$ 42.14
17	5304504811		Spacer, Glass			Immediately	$ 27.80
21	316533801		Plate, Distribution, Load			Immediately	$ 6.30
23	316575948		Hinge, Oven Door			Immediately	$ 52.99
39	316544500		Handle, Door, Black				$ 122.10
40	316552401		Bracket, Airwash Glass, (2)				$ 32.03
52	5304512114		Cap, Door, Black		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316483102		Label, Anti-tip				$ 3.95
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
