01 - Cover Sheet
02 - Backguard

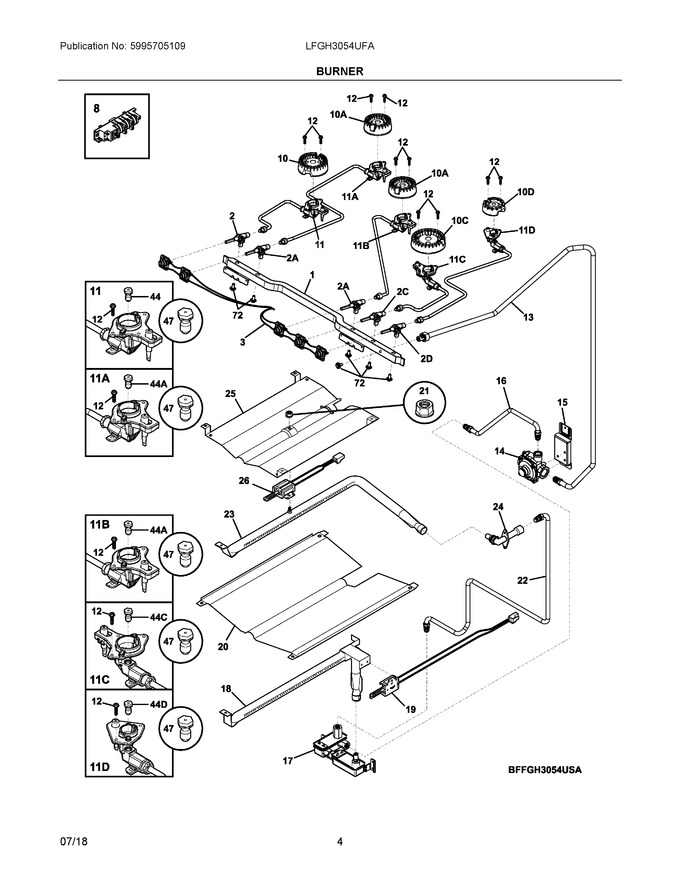

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Schematic
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304514134 | Manifold, Pipe |
|
$ 88.99 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 69.27 | ||||
| 3 | 5304528832 | Switch Assembly, Ignitor, W/harness (Replaces: 5304518025) |
|
Immediately | $ 124.34 | ||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 84.51 | ||||
| 10 | 316438600 | Burner, Sealed, 14k |
|
$ 88.67 | |||||
| 11 | 5304514185 | Ignitor/orifice Assy., Top Burner, Lh Front, 12k, W/holder, Tube |
|
$ 33.12 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 16.85 | ||||
| 13 | 5304514135 | Tube, Manifold Supply |
|
- | |||||
| 14 | 316091711 | Regulator, Pressure (Replaces: 5304498819) |
|
Immediately | $ 100.03 | ||||
| 15 | 316603300 | Bracket, Regulator |
|
$ 25.28 | |||||
| 16 | 5304514182 | Tube, Safety Valve |
|
- | |||||
| 17 | 316031501 | Valve, Safety |
|
Immediately | $ 329.18 | ||||
| 18 | 316404400 | Burner, Oven |
|
$ 121.22 | |||||
| 19 | 316489403 | Ignitor, Bake (Replaces: 5304508786) |
|
Immediately | $ 158.41 | ||||
| 20 | 5304519024 | Baffle, Oven Burner (Replaces: 316401401) |
|
Immediately | $ 89.32 | ||||
| 21 | 154079601 | Nut, Hex Head Sems (Replaces: 5303013272) |
|
$ 0.46 | |||||
| 22 | 5304514183 | Tube, Safety Valve, To Mixer |
|
- | |||||
| 23 | 316404302 | Burner, Broiler |
|
$ 115.76 | |||||
| 24 | 5304516894 | Elbow, Mixer |
|
$ 96.90 | |||||
| 25 | 5304497666 | Baffle, Broiler |
|
$ 104.49 | |||||
| 26 | 5304506545 | Ignitor, Broiler |
|
Immediately | $ 104.68 | ||||
| 44 | 316527502 | Orifice, Burner, 12k |
|
$ 25.20 | |||||
| 47 | GRLP4 | Lp Conversion Kit, W/instructions, Optional, Accessory |
|
Immediately | $ 63.00 | ||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 10C | 316438400 | Burner, Sealed, 18.2k |
|
Immediately | $ 92.69 | ||||
| 10D | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 11A | 5304514186 | Ignitor/orifice Assy., Top Burner, Lh Rear, 9.5k, W/holder, Tube |
|
$ 49.72 | |||||
| 11B | 5304514187 | Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder, Tube |
|
$ 43.52 | |||||
| 11C | 5304514188 | Ignitor/orifice Assy., Top Burner, Rh Front, 17k, W/holder, Tube |
|
$ 34.44 | |||||
| 11D | 5304514189 | Ignitor/orifice Assy., Top Burner, Rh Rear, 5k, W/holder, Tube |
|
$ 68.25 | |||||
| 2A | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 91.84 | ||||
| 2C | 5304507282 | Valve, Top Burner, White Stem, 1500btu (Replaces: 5304506550) |
|
Immediately | $ 59.83 | ||||
| 2D | 5304506547 | Valve, Top Burner, Black Stem, 500btu |
|
$ 76.68 | |||||
| 44A | 316527500 | Orifice, Burner, 9.5k |
|
$ 23.78 | |||||
| 44C | 316527509 | Orifice, Burner, 17k |
|
$ 22.05 | |||||
| 44D | 316527504 | Orifice, Burner, 5k |
|
$ 25.20 | |||||
| NI | 316021104 | Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt |
|
$ 8.66 | |||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.37 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NIA | 316401500 | Cover, Broil Ignitor |
|
$ 14.32 | |||||
| NIA | 316498100 | Shield, Wire, Safety Valve |
|
$ 16.85 | |||||
| NIB | 5304514192 | Harness, Wiring, Ignitor Module |
|
$ 56.46 |
