SELECT A DIAGRAM

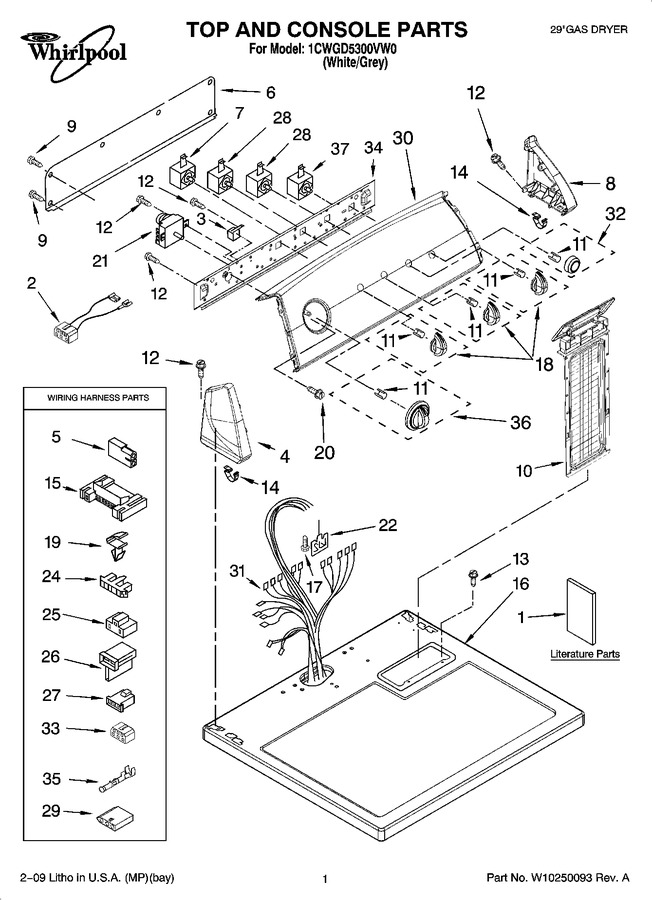

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131642 | Use & Care Guide |
|
- | |||||
| 1 | 8578889 | Wiring Diagram |
|
- | |||||
| 1 | W10131643 | Instructions, Installation |
|
- | |||||
| 1 | W10042950 | Sheet, Cycle Feature |
|
- | |||||
| 2 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 61.68 | |||||
| 5 | 717252 | Plug, 2-way Terminal |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 7 | W11106324 | Switch, Temperature (Replaces: 3405155) |
|
$ 223.93 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 62.70 | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 17 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 18 | W10034380 | Knob, Control (3) |
|
$ 25.06 | |||||
| 19 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 20 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 21 | WP8566184 | Timer Assembly (60 Hz.) (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 314.22 | ||||
| 24 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 25 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 26 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 5.73 | |||||
| 27 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 6.95 | |||||
| 28 | WP3405156 | Switch Rotary (twist Mount) (Replaces: 3405156) |
|
$ 145.51 | |||||
| 29 | 3936144 | Connector |
|
$ 20.21 | |||||
| 30 | W10206010 | Panel, Control |
|
$ 182.11 | |||||
| 31 | 8576542 | Harness, Wiring |
|
- | |||||
| 32 | WPW10034790 | Knob, Push-to-start (Replaces: W10034790) |
|
$ 55.06 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | 8566052 | Bracket, Control |
|
- | |||||
| 35 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 36 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 37 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 92.88 |
