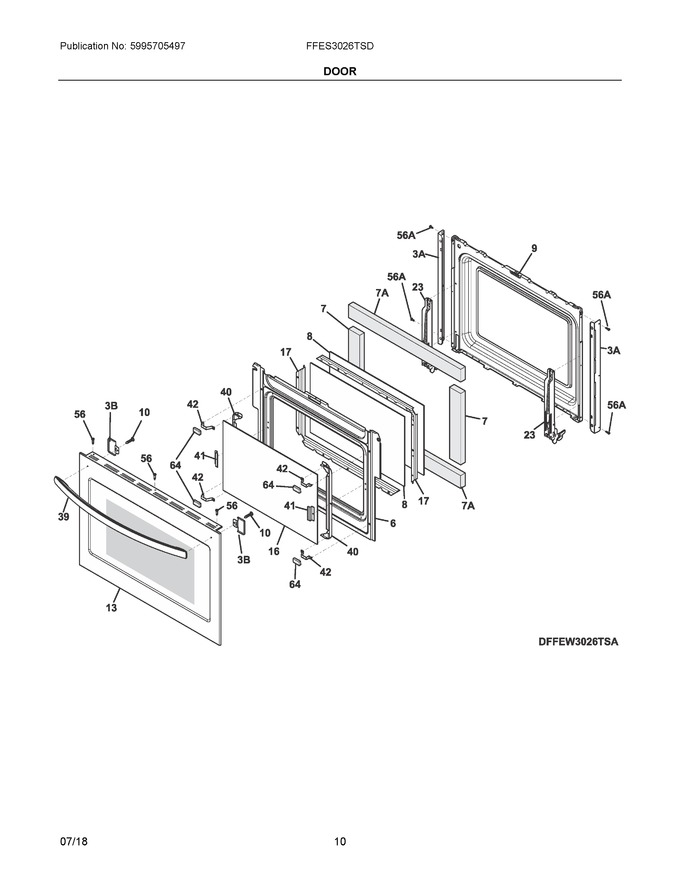

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 134.82
7	318372017		Insulation, Door				$ 18.11
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117503)				$ 129.94
9	139000411		Liner, Oven Door				$ 169.37
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 16.54
13	5304510851		Door Assembly, Outer, Stainless/black				$ 414.02
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 139.03
17	318264731		Spacer, Glass, (2)				$ 80.05
23	316575915		Hinge, Oven Door, Lime   (Replaces: 316575914)				$ 184.54
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
40	318242702		Bracket, Glass Holder, Door, (2)				$ 21.91
41	318370602		Bracket, Glass Panel, (2)				$ 15.17
42	318382302		Bracket, Glass Retainer, (4)				$ 56.46
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 15.75
64	318165800		Spacer, Glass, Foam				$ 19.69
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 36.24
3B	318262104		Cover, Rear Door, Black, (2)				$ 27.77
56A	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
7A	318372016		Insulation, Door				$ 19.69
NI	316483102		Label, Anti-tip				$ 3.95
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
