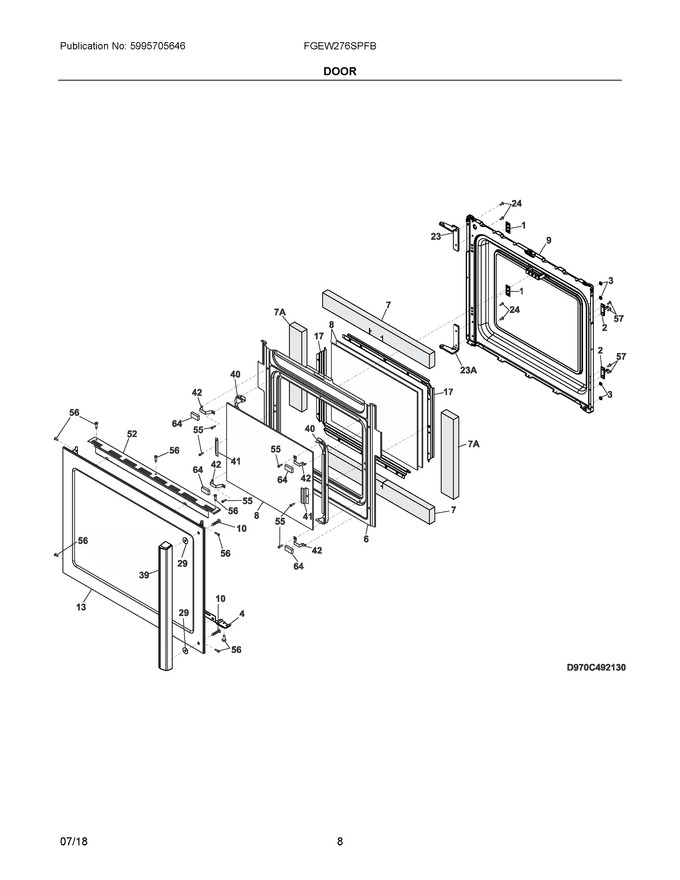

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304497582		Plug, Door, Rectangular, (2)				$ 16.54
2	808983901		Catch, Door, (2)			Immediately	$ 36.33
3	5304497575		Plug, Door, Inner, (4)				$ 10.24
4	139023503		Trim, Door, Black, Bottom				$ 87.41
6	139014207		Shield, Wool, Door			Immediately	$ 159.86
7	318372017		Insulation, Door				$ 18.11
8	139085803		Glass, Oven Door, Heat Barrier   (Replaces: 318212201)			Immediately	$ 120.50
9	5304504205		Liner, Door			Immediately	$ 241.76
10	5304414648		Screw, Handle Mtg., #10-24 X .625, (2)   (Replaces: 316439510)				$ 15.75
13	139099641		Door Assembly, Outer, Steel/glass, Stainless/black, W/trim				$ 548.94
17	318264735		Spacer, Glass, (2)				$ 71.66
23	808892901		Hinge, Oven Door, Top			Immediately	$ 27.56
24	5304461333		Screw, 10-32 X 17/32			Immediately	$ 14.96
29	5304497580		Spacer, Door Handle				$ 11.81
39	5304497571		Handle, Door, Stainless				$ 226.52
40	318242702		Bracket, Glass Holder, Door, (2)				$ 21.91
41	318370602		Bracket, Glass Panel, (2)				$ 15.17
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 56.46
52	139023603		Trim, Oven Door, Black, Upper				$ 110.25
55	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 15.75
57	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
64	318165800		Spacer, Glass, Foam				$ 19.69
23A	808892902		Hinge, Oven Door, Bottom			Immediately	$ 28.35
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 15.75
NIA	5304497574		Spacer, Cork/rubber, (8)		Appelez-nous	-
NIA	139022102		Insualtion, Door, 546 X 102mm, W/foil Back				$ 43.31
NIB	139022103		Insualtion, Door, 508 X 51mm				$ 15.75
