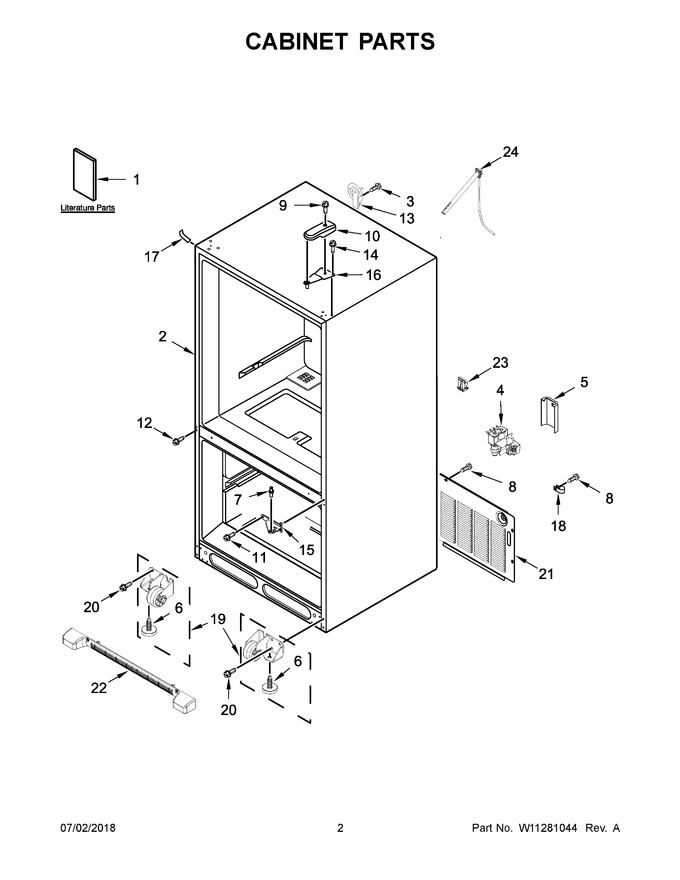

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10621529 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 4 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 126.10 | ||||
| 5 | W10208592 | Cover, Valve |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 8 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11106366 | Cover, Hinge (grey) (Replaces: 12477601AP) |
|
$ 72.21 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (grey) (Replaces: 12607103AP) |
|
$ 66.47 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 18 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 22 | WPW10534165 | Grille, Toe (grey) (Replaces: W10534165) |
|
Immediately | $ 60.90 | ||||
| 23 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.33 | ||||
| 24 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046935) |
|
Immediately | $ 86.92 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 1A | W11112638 | Energy Guide |
|
- | |||||
| 1B | W10517966 | Tech Sheet |
|
- |
