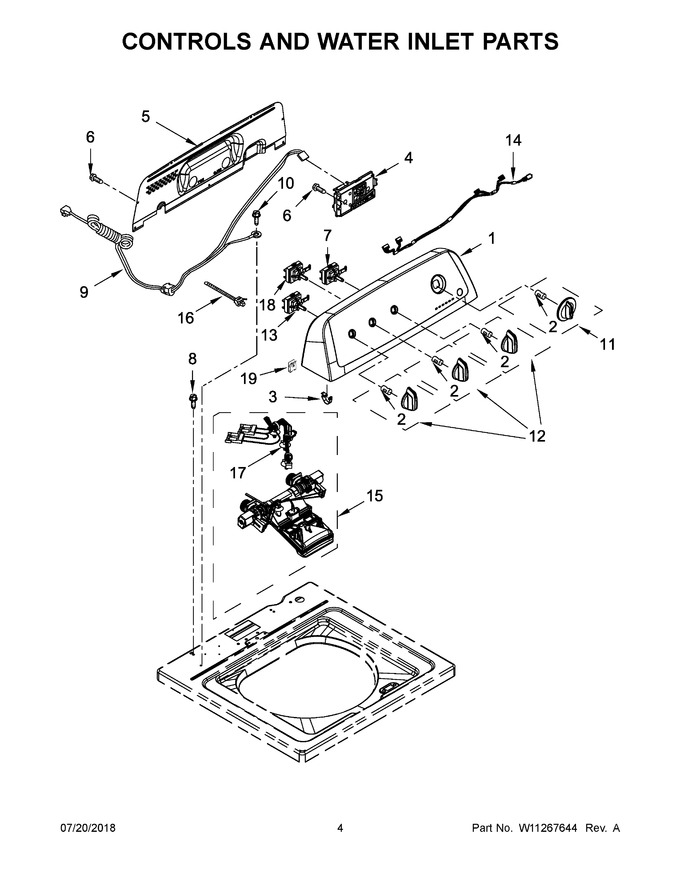

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219608 | Panel, Console (Replaces: W11158211) |
|
Immediately | $ 370.40 | ||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W11498190 | Control Unit Assembly, Machine And Motor (Replaces: W11211478) |
|
Immediately | $ 264.49 | ||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 240.14 | |||||
| 6 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 7 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 190.06 | |||||
| 8 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.19 | ||||
| 9 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 128.60 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 11 | WPW10711289 | Knob, Timer (white) (Replaces: W10711289) |
|
Immediately | $ 7.93 | ||||
| 12 | WPW10453947 | Knob, Control (white) (Replaces: W10453947) |
|
$ 52.15 | |||||
| 13 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 179.35 | ||||
| 14 | W10694671 | Harness, Upper |
|
$ 181.52 | |||||
| 15 | W11210459 | Inlet Assembly, Water (Replaces: W11025984) |
|
Immediately | $ 102.67 | ||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 17 | W10868094 | Harness, Valve |
|
$ 177.25 | |||||
| 18 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 208.68 | ||||
| 19 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 |
