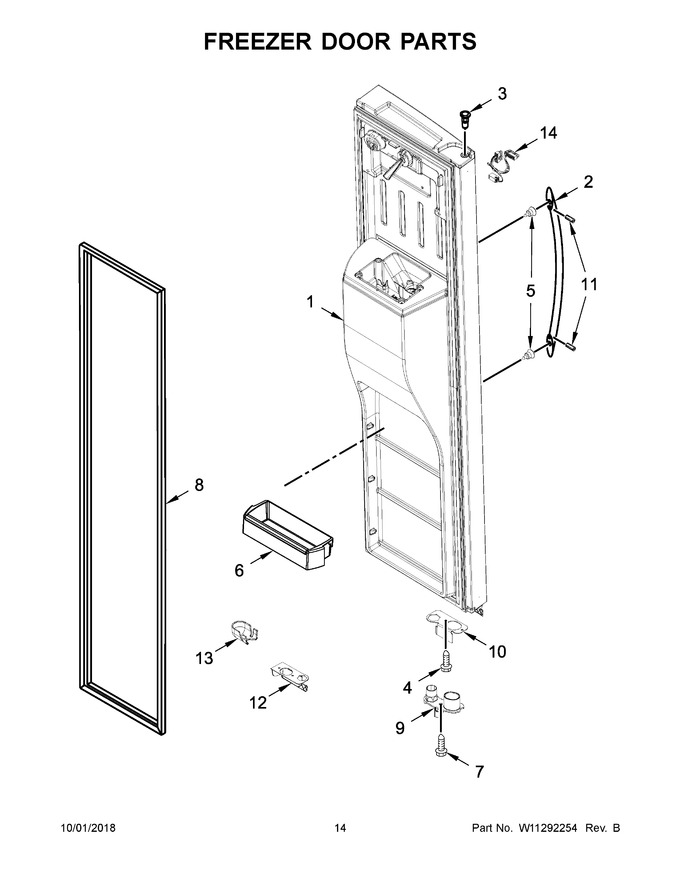

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11202404 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (white) (Replaces: W11202404) |
|
$ 1,440.13 | |||||
| 2 | W11432251 | Handle (white) (Replaces: W11045527) |
|
$ 189.72 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 6 | WPW10430639 | Bin, Door (Replaces: W10430639) |
|
Immediately | $ 109.19 | ||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 8 | WPW10247885 | Gasket, Door (beige) (Replaces: W10247885) |
|
$ 347.07 | |||||
| 9 | WPW10248015 | Closer, Upper Cam Door (white) (Replaces: W10248015) |
|
$ 12.85 | |||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10910405) |
|
$ 69.21 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 12 | W10632059 | Cover, Door Stop (white) |
|
$ 23.46 | |||||
| 13 | W10323148 | Cover, Wire |
|
$ 42.25 | |||||
| 14 | W11293361 | Wire, Jumper (Replaces: W10850872) |
|
$ 140.89 | |||||
| 12A | W10632060 | Cover, Door Stop (black) |
|
$ 22.30 | |||||
| 12B | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 7.55 | |||||
| 1A | LW11202402 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black) (Replaces: W11202402) |
|
$ 1,441.49 | |||||
| 1B | LW11202403 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless) (Replaces: W11202403) |
|
$ 1,453.86 | |||||
| 1C | LW11202405 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W11202405) |
|
$ 1,502.36 | |||||
| 2A | W11450221 | Handle (black) (Replaces: W11045528) |
|
$ 189.65 | |||||
| 2B | W11043764 | Handle (black Stainless) (Replaces: W10917722) |
|
$ 190.44 | |||||
| 2C | W11163764 | Handle (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 8A | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 321.05 | |||||
| 8B | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 337.27 | |||||
| 9A | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 13.98 | ||||
| 9B | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 13.18 |
