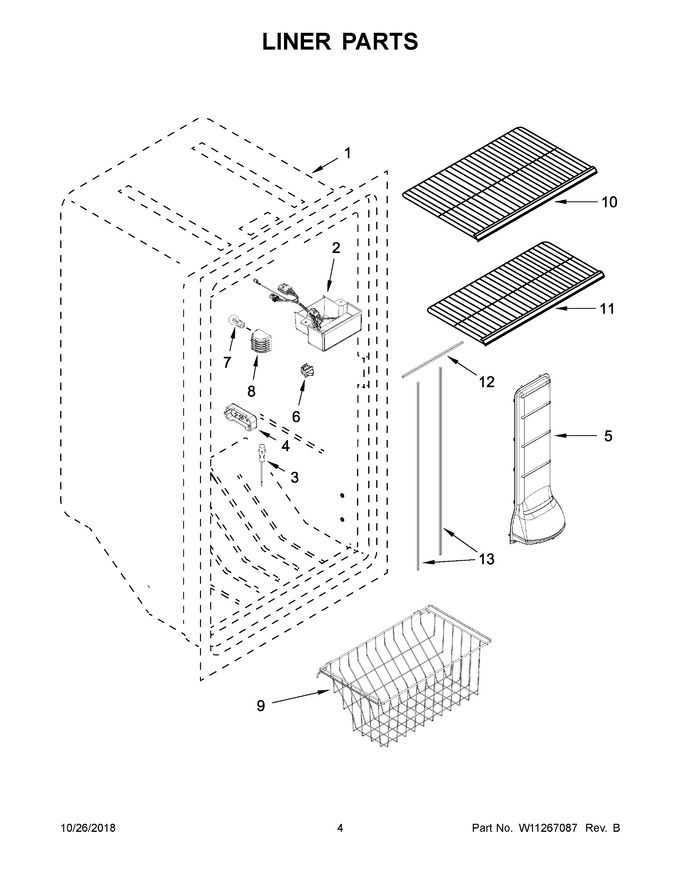

03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W11496886		Control Assembly   (Replaces: W11221362)		Appelez-nous	-
3	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 118.47
4	W10608692		Cover, Thermistor				$ 31.23
5	W10574272		Air Tower			Immediately	$ 134.24
6	W10755325		Switch, Light			Immediately	$ 41.17
7	W11338583		Lamp, Led   (Replaces: W10805744)			Immediately	$ 107.21
8	W10569269		Lens, Control Box				$ 86.49
9	W11293207		Basket, Deep   (Replaces: W10581577)		Appelez-nous	-
10	W11397871		Wire Shelf, Deep   (Replaces: W10581580)			Immediately	$ 101.83
11	W11578876		Wire Shelf, Shallow   (Replaces: W10581581)		Appelez-nous	-
12	WPW10574368		Gasket, Air Tower (horizontal)   (Replaces: W10574564)				$ 8.75
13	WPW10574368		Gasket, Air Tower (vertical)   (Replaces: W10574368)				$ 8.75
