SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram

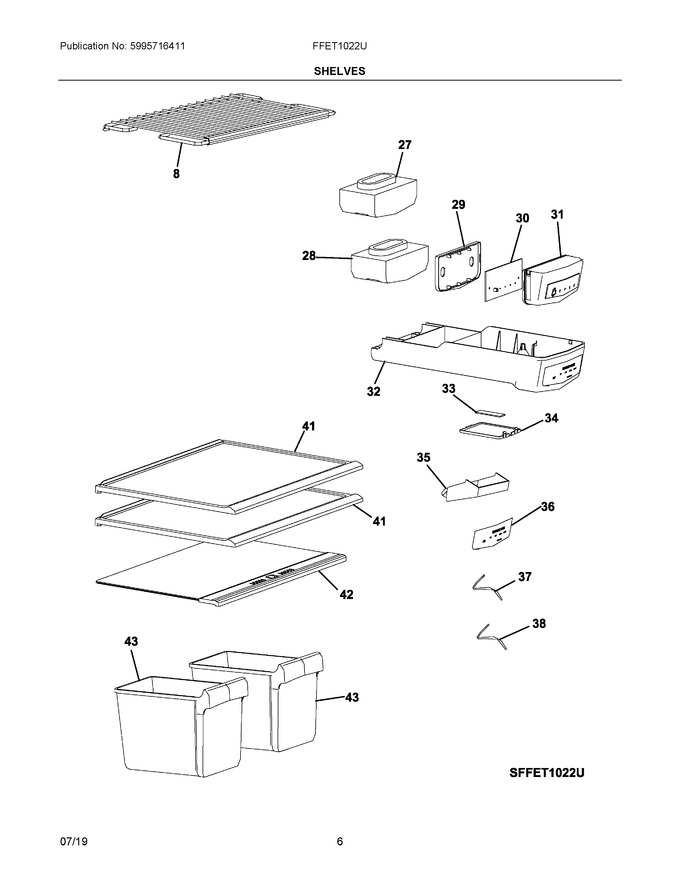

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304518503		Shelf, Freezer		Appelez-nous	-
27	5304518504		Insulation, Control Box, Upper				$ 100.11
28	5304518505		Insulation, Control Box, Lower				$ 87.21
29	5304536500		Housing, Control Board, Rear   (Replaces: 5304518506)				$ 5.61
30	5304518507		Control Board, Electronic			Immediately	$ 350.37
31	4056021258		Cover, Control Board, Front   (Replaces: 5304518508)			Immediately	$ 22.59
32	5304518509		Housing, Control Box				$ 113.09
33	5304518510		Light, Led			Immediately	$ 111.16
34	5304518511		Cover, Light				$ 50.85
35	5304518512		Trough, Water Collector				$ 60.78
36	5304518513		Display Panel, Control				$ 87.56
37	5304518514		Harness, Wiring, Low Voltage				$ 162.30
38	5304518515		Harness, Wiring, High Voltage				$ 150.92
41	5304518516		Shelf, Refrigerator, (2)				$ 236.76
42	5304518517		Cover, Crisper				$ 198.19
43	5304518518		Drawer, Crisper, (2)			Immediately	$ 235.58

    View Diagram in Separate Window       Print Part List
