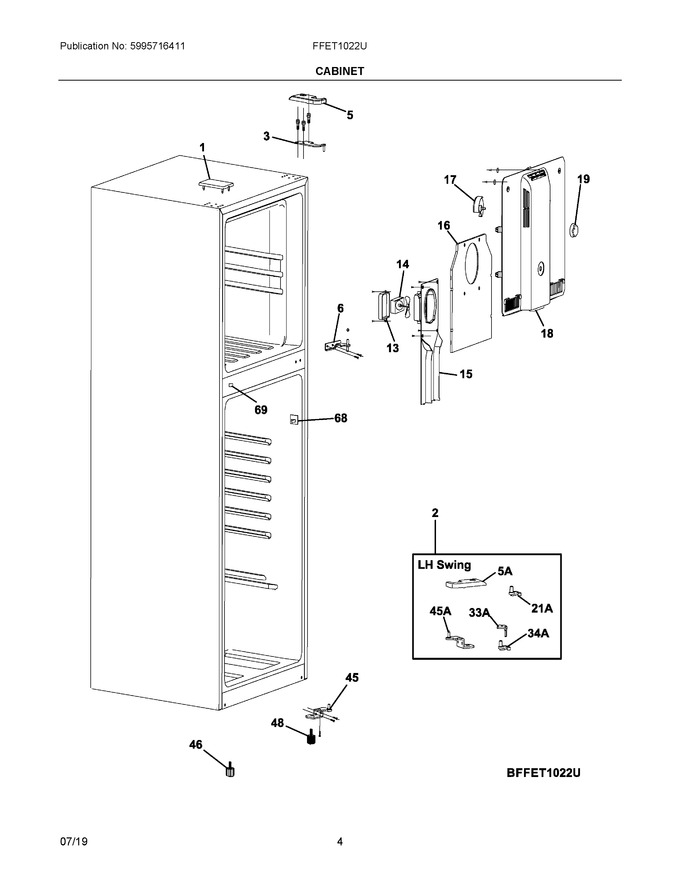

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304518573		Cover, Hinge Holes, White, Upper				$ 50.85
2	5304522607		Door Reversal Kit, Lh Door Swing, White, 5 Parts				$ 228.02
3	5304530321		Door Hinge, Upper   (Replaces: 5304518488)			Immediately	$ 56.93
5	5304518534		Cover, Upper Hinge, White, Rh Door Swing				$ 66.62
6	5304518490		Door Hinge, Middle				$ 88.72
13	5304518491		Cover, Fan Motor, Rear				$ 49.19
14	5304518492		Motor Assembly, Evaporator Fan, W/blade			Immediately	$ 226.95
15	5304518493		Housing, Fan, Rear				$ 116.24
16	5304518494		Insulation, Coil Cover		Appelez-nous	-
17	5304518495		Baffle, Adjustment, Fan				$ 38.28
18	5304518496		Cover, Coil, Front				$ 188.19
19	5304518497		Knob, Freezer Control				$ 19.72
45	5304537118		Door Hinge, Lower, Rh Door Swing   (Replaces: 5304518498)			Immediately	$ 45.55
46	5304518535		Foot, Cabinet, White				$ 70.23
48	5304518500		Foot, Cabinet, White, Adjustable   (Replaces: 5304518536)			Immediately	$ 37.58
68	5304518501		Switch, Door			Immediately	$ 83.73
69	5304518502		Cover, Screw		Appelez-nous	-
21A	5304518556		Door Stopper, Freezer Door, Lh Door Swing				$ 20.74
33A	5304518553		Bracket, Door Closer, Metal, Lh Door Swing   (Replaces: 5304518554)				$ 62.19
34A	5304518553		Closer, Refr Door, Lh Door Swing				$ 62.19
45A	5304537118		Door Hinge, Lower, Lh Door Swing   (Replaces: 5304518564)			Immediately	$ 45.55
5A	5304518574		Cover, Upper Hinge, White, Lh Door Swing				$ 35.74
