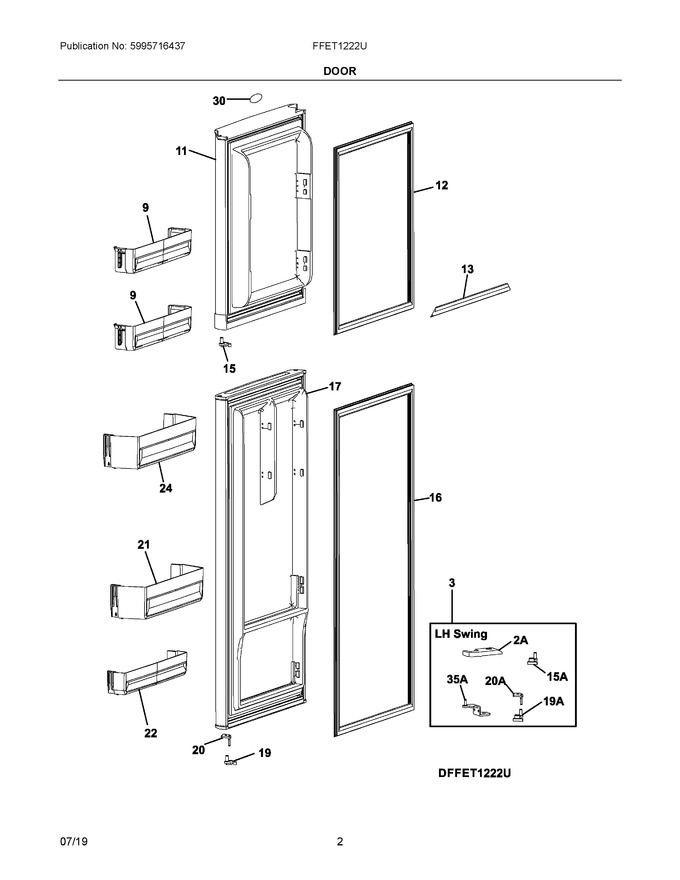

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304522606		Door Reversal Kit, Lh Door Swing, Gray, 5 Parts				$ 243.13
9	5304518481		Rack, Freezer Door, (2)			Immediately	$ 226.30
11	5304518480		Door Assembly, Freezer, Stainless			Immediately	$ 631.06
12	5304538613		Gasket, Freezer Door, Gray   (Replaces: 5304518478)				$ 50.66
13	5304518479		Gasket, Liner, Freezer Door				$ 56.70
15	5304518477		Door Stopper, Freezer Door, Rh Door Swing				$ 23.41
16	5304538612		Gasket, Refr Door, Gray   (Replaces: 5304518483)			Immediately	$ 50.66
17	5304518567		Door Assembly, Refrigerator, Stainless				$ 889.61
19	5304518485		Closer, Refr Door, Rh Door Swing			Immediately	$ 64.15
20	5304518484		Bracket, Door Closer, Metal, Rh Door Swing				$ 35.74
21	5304518486		Rack, Refr Door, Lower			Immediately	$ 210.73
22	5304518555		Rack, Refr Door, Bottom			Immediately	$ 91.67
24	5304518482		Rack, Refr Door, Upper			Immediately	$ 189.63
30	5304518568		Badge, Nameplate, Stainless			Immediately	$ 80.54
15A	5304518556		Door Stopper, Freezer Door, Lh Door Swing				$ 20.74
19A	5304518553		Closer, Refr Door, Lh Door Swing				$ 62.19
20A	5304518553		Bracket, Door Closer, Metal, Lh Door Swing   (Replaces: 5304518554)				$ 62.19
2A	5304518570		Cover, Upper Hinge, Gray, Lh Door Swing				$ 60.44
35A	5304537118		Door Hinge, Lower, Lh Door Swing   (Replaces: 5304518564)			Immediately	$ 45.55

    View Diagram in Separate Window       Print Part List
