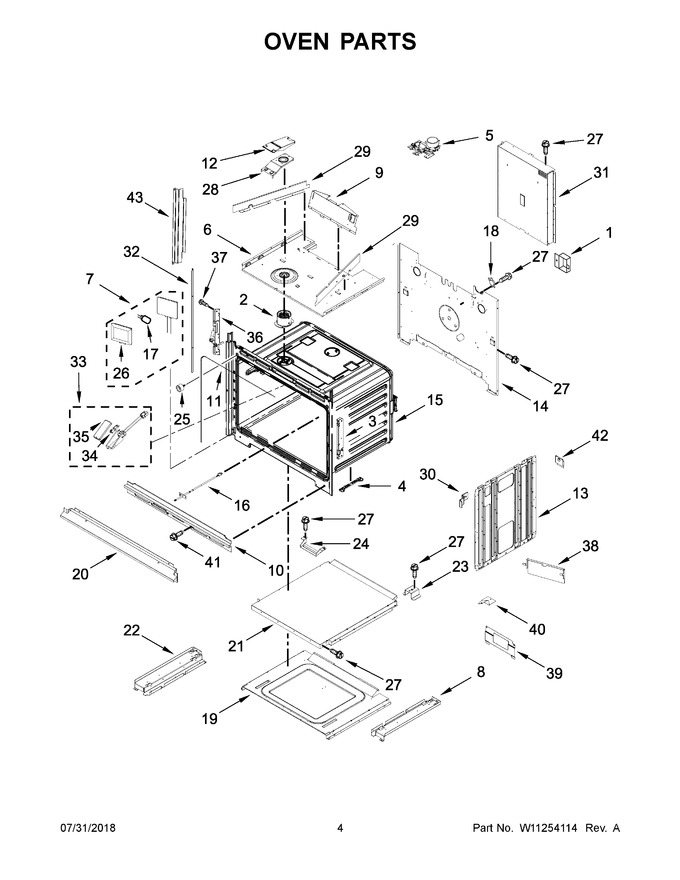

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 22.99
3	W11613828		Receiver, Hinge   (Replaces: W10616802)			Immediately	$ 51.74
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 15.53
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 275.81
6	W10904158		Top, Chassis		Appelez-nous	-
7	W11245268		Assembly, Oven Light   (Replaces: W11198684)				$ 93.79
8	W10283021		Support, Base (right)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 152.81
10	W10495154		Vent, Center 30				$ 178.67
11	W11623080		Gasket   (Replaces: W10739089)			Immediately	$ 65.12
12	W10616810		Cover, Vent Exhaust				$ 62.96
13	W10663556		Side, Chassis (left)		Appelez-nous	-
14	N/P		Back, Chassis (not Serviced)		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 143.11
17	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 103.05
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
19	W11238787		Base, Chassis   (Replaces: W10834867)				$ 314.69
20	WPW10327374		Assembly, Bottom Vent (stainless)   (Replaces: W10327374)				$ 312.10
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 198.05
22	W10283020		Support, Base (left)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.91
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 86.70
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
28	W10616809		Base, Vent Exhaust				$ 29.02
29	W10681156		Deflector, Chassis		Appelez-nous	-
30	W10834501		Spacers, Front				$ 14.35
31	W10519703		Cover, Back Duct		Appelez-nous	-
32	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 34.86
33	W11325525		Assembly, Light   (Replaces: W11223933)				$ 90.92
34	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 46.52
35	W10169756		Lens, Light				$ 37.97
36	W11045086		Receiver, Slow Close Hinge			Immediately	$ 115.94
37	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
38	W10753663		Shield, Inner		Appelez-nous	-
39	W10846765		Shield, Outer		Appelez-nous	-
40	W10832249		Shield. Bottom (left)		Appelez-nous	-
41	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.80
42	W10834286		Spacer, Center				$ 20.79
43	W10791505		Shield, Front Frame Heat		Appelez-nous	-
13A	W10318190		Side, Chassis (right)				$ 117.20
32A	W10536162		Trim, Side (black (right))   (Replaces: W10344482)				$ 34.86
40A	W10832250		Shield. Bottom (right)		Appelez-nous	-
NI	W11685004		Insulation, Control Knob   (Replaces: W10464568)		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 112.38
NI	W11688414		Insulation, Cavity   (Replaces: W10566640)		Appelez-nous	-
