SELECT A DIAGRAM
New Model Search:

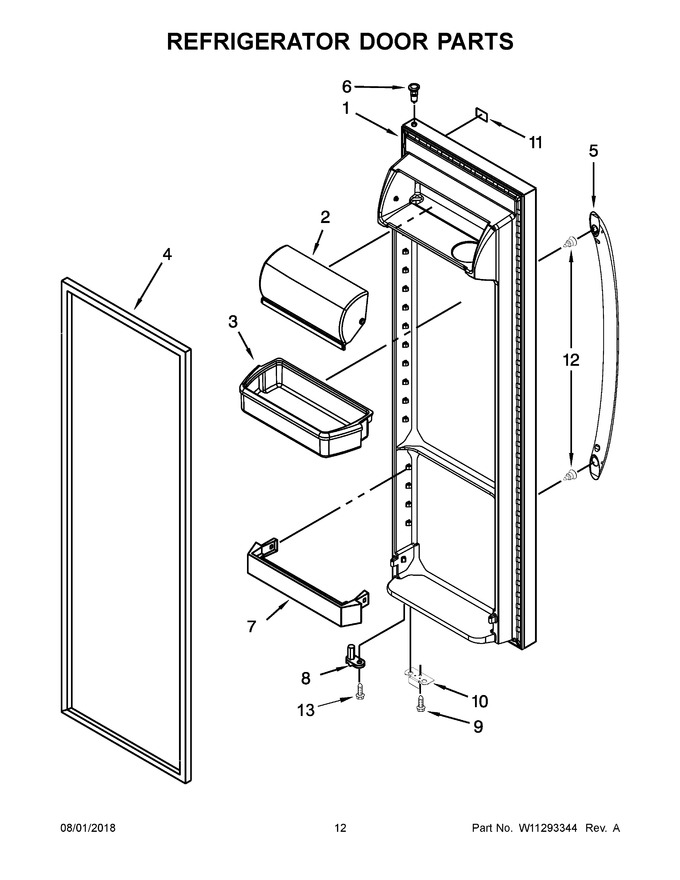

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10825205 | Door, Refrigerator (includes Door Gasket) (dolos Steel) (Replaces: W10825205) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WPW10321304 | Bin, Door (Replaces: W10321304) |
|
Immediately | $ 44.73 | ||||
| 4 | WPW10136734 | Gasket, Door (grey) (Replaces: 2327163) |
|
$ 335.39 | |||||
| 5 | WPW10670421 | Handle (stainless) (Replaces: W10274730) |
|
$ 254.15 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11253684 | Thimble, Cam (Replaces: W10846216) |
|
$ 13.69 | |||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 10 | W10219801 | Bracket, Door Stop (silver) |
|
$ 5.27 | |||||
| 11 | WPW10511972 | Nameplate (grey) (Replaces: W10511972) |
|
$ 79.55 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
