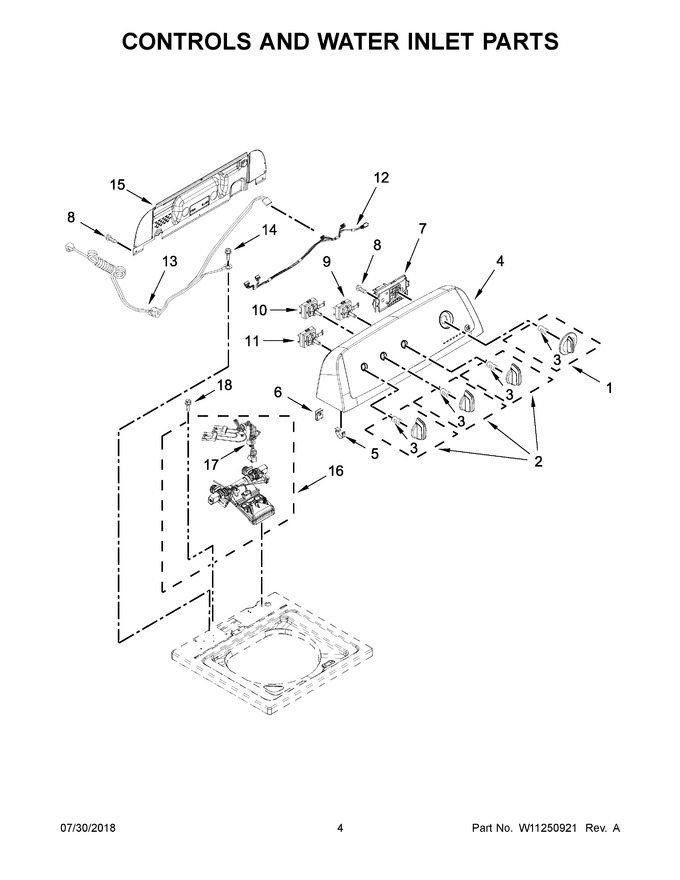

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11216549 | Knob, Timer (white) (Replaces: W11158829) |
|
$ 55.11 | |||||
| 2 | W11216550 | Assembly, Control Knob (white) (Replaces: W11160348) |
|
Immediately | $ 52.38 | ||||
| 3 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 4 | W11226498 | Panel, Console (Replaces: W11158207) |
|
Immediately | $ 388.66 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | W11498190 | Control Unit Assembly, Machine And Motor (Replaces: W11211478) |
|
Immediately | $ 264.49 | ||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 9 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 199.56 | |||||
| 10 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 219.11 | ||||
| 11 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 188.32 | ||||
| 12 | W10694671 | Harness, Upper |
|
$ 190.60 | |||||
| 13 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 135.03 | ||||
| 14 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 15 | W10409320 | Panel, Console Rear Cover |
|
$ 263.79 | |||||
| 16 | W11210459 | Inlet Assembly, Water (Replaces: W11025984) |
|
Immediately | $ 102.67 | ||||
| 17 | W10868094 | Harness, Valve |
|
$ 186.11 | |||||
| 18 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 |
