SELECT A DIAGRAM

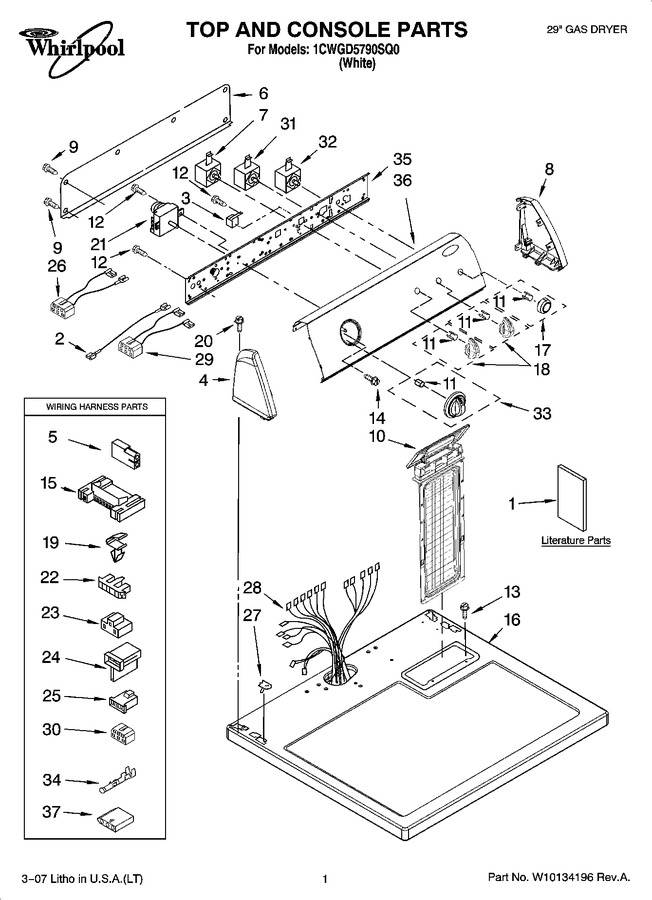

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8562582		Instructions, Installation		Appelez-nous	-
1	8578183		Use & Care Guide		Appelez-nous	-
1	8576811		Wiring Diagram		Appelez-nous	-
1	W10042960		Sheet, Cycle Feature		Appelez-nous	-
2	3401684		Wire, Jumper (black)				$ 34.57
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	717252		Plug, 2-way Terminal		Appelez-nous	-
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 52.03
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.22
15	3395683		Connector (motor)			Immediately	$ 51.86
16	8557931		Top		Appelez-nous	-
17	WP8566073		Knob, Push-to-start   (Replaces: 8566073)				$ 55.24
18	8565944		Knob, Control (3)				$ 25.10
19	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
20	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
21	WP8299766		Timer Assembly (60 Hz.)   (Replaces: 8299766)				$ 370.70
22	3397269		Connector, Timer				$ 25.55
23	3401144		Connector, (pts Relay)				$ 12.20
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	3397695		Wire, Jumper (guard On/off)				$ 86.40
27	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
28	8299879		Harness, Wiring		Appelez-nous	-
29	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 18.84
30	3347243		Connector 6-circuit		Appelez-nous	-
31	WP3405156		Switch, Finish Guard   (Replaces: 3405156)				$ 145.51
32	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
33	8566061		Timer Knob Assembly				$ 26.93
34	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
35	8544895		Bracket, Control		Appelez-nous	-
36	8578857		Panel, Control (biscuit)		Appelez-nous	-
36	8578856		Panel, Control (white)		Appelez-nous	-
37	3936144		Connector				$ 20.21
