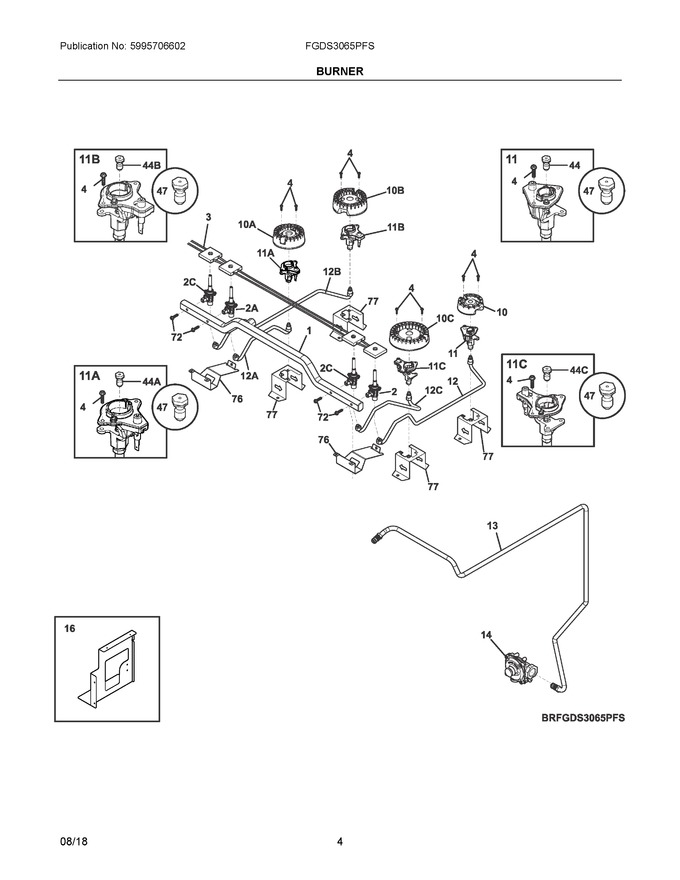

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506502 | Manifold Pipe, Long |
|
$ 181.13 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 78.36 | ||||
| 3 | 5304509745 | Switch Assembly, Ignitor, 4 Valve, W/harness |
|
Immediately | $ 114.31 | ||||
| 4 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 16.85 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 11 | 316540800 | Ignitor/orifice Assy., Top Burner, 5k, W/holder |
|
$ 12.44 | |||||
| 12 | 318916800 | Tube, Burner Supply, Rh Rear |
|
$ 110.09 | |||||
| 13 | 5304506712 | Tube, Reg To Manf |
|
$ 82.69 | |||||
| 14 | 318122721 | Regulator, Pressure |
|
Immediately | $ 140.72 | ||||
| 16 | 318590003 | Panel, Regulator Mtg. |
|
$ 51.50 | |||||
| 44 | 316527504 | Orifice, Burner, 5k |
|
$ 25.20 | |||||
| 47 | GRLP4 | Conversion Kit, Lp (Replaces: 318565405) |
|
Immediately | $ 63.00 | ||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| 76 | 318906703 | Bracket, Manifold, (2) |
|
$ 46.57 | |||||
| 77 | 318920300 | Bracket, Burner Mtg, (4) |
|
- | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
$ 88.67 | |||||
| 10C | 316438400 | Burner, Sealed, 18.2k |
|
Immediately | $ 92.69 | ||||
| 11A | 316540700 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder |
|
$ 12.39 | |||||
| 11B | 316543206 | Ignitor/orifice Assy., Top Burner, 14k, W/holder |
|
$ 163.01 | |||||
| 11C | 316543203 | Ignitor/orifice Assy., Top Burner, 17k, W/holder |
|
$ 13.55 | |||||
| 12A | 318916500 | Tube, Burner Supply, Lh Front |
|
$ 53.09 | |||||
| 12B | 318916600 | Tube, Burner Supply, Lh Rear |
|
- | |||||
| 12C | 318916700 | Tube, Burner Supply, Rh Front |
|
$ 57.49 | |||||
| 2A | 5304507282 | Valve, Top Burner, Red Stem, 1800btu |
|
Immediately | $ 59.83 | ||||
| 2C | 5304506551 | Valve, Top Burner, Pink Stem, 2500btu |
|
$ 68.25 | |||||
| 44A | 316527500 | Orifice, Burner, 9.5k |
|
$ 23.78 | |||||
| 44B | 316527513 | Orifice, Top Burner, 14k |
|
$ 24.50 | |||||
| 44C | 316527509 | Orifice, Burner, 17k |
|
$ 22.05 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 318199776 | Wiring Harness, Ignitor |
|
$ 60.67 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 |
