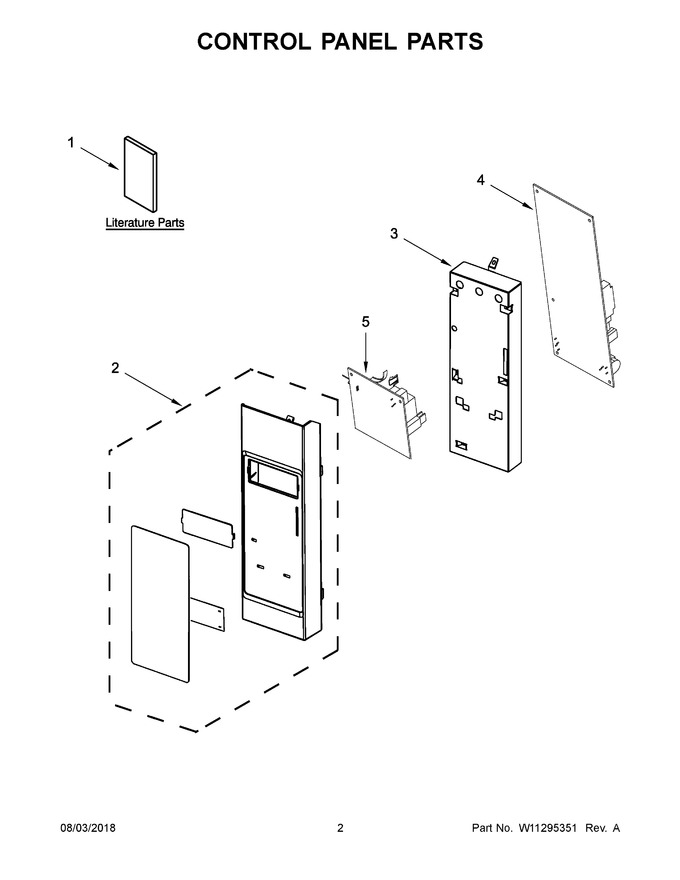

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724870 | Installation Instructions |
|
- | |||||
| 2 | W10917119 | Assembly, Control Panel (white) |
|
- | |||||
| 3 | W10771573 | Backer, Control Panel |
|
$ 78.23 | |||||
| 4 | W11182110 | Pcba, Appliance Control Unit (Replaces: W11127563) |
|
$ 323.66 | |||||
| 5 | W11192677 | Pcba, User Interface (Replaces: W11131398) |
|
- | |||||
| 1A | W10841423 | Use And Care Guide |
|
- | |||||
| 1B | W10792842 | Quick Reference Guide |
|
- | |||||
| 1C | W11178992 | Tech Sheet |
|
- | |||||
| 2A | W10917118 | Assembly, Control Panel (black) |
|
- |
