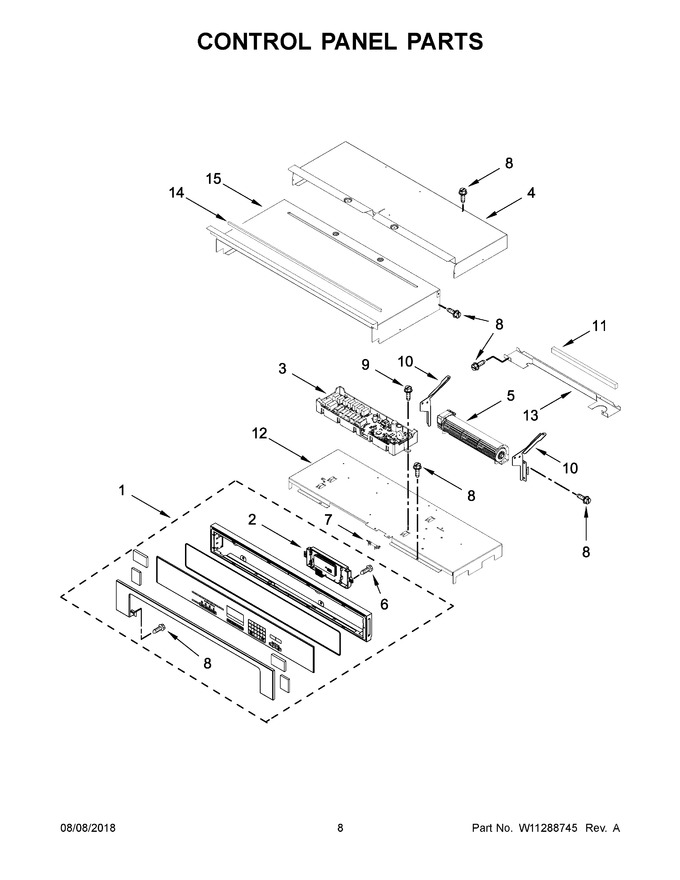

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11293804 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11110944) |
|
Immediately | $ 583.20 | ||||
| 2 | W10803991 | Interface (maxwell), User Board (Replaces: W10752315) |
|
Immediately | $ 420.04 | ||||
| 3 | W10850498 | Board (maxwell), Main (Replaces: W10759205) |
|
$ 490.69 | |||||
| 4 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10694465) |
|
- | |||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 348.59 | ||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 27.91 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 13 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 14 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 15 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- |
