View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts

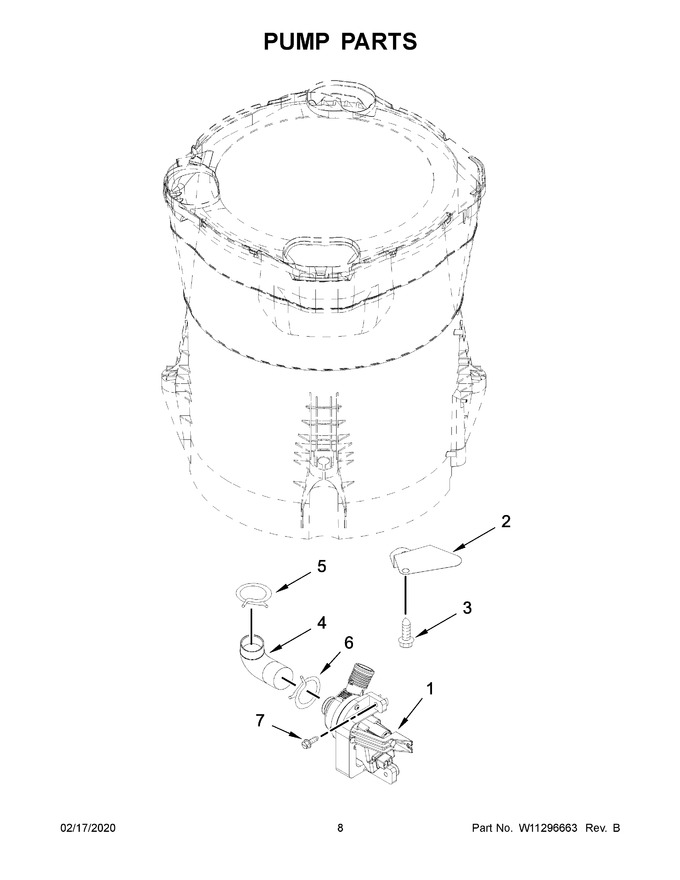

05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10876600 | Pump Assembly, Drain (Replaces: W10727777) |
|
Immediately | $ 180.49 | ||||
| 2 | W10894129 | Shield, Heat |
|
- | |||||
| 3 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 | ||||
| 4 | W10802689 | Hose, Tub To Pump (Replaces: W10763259) |
|
$ 34.64 | |||||
| 5 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.81 | ||||
| 6 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 7 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 8.39 |
