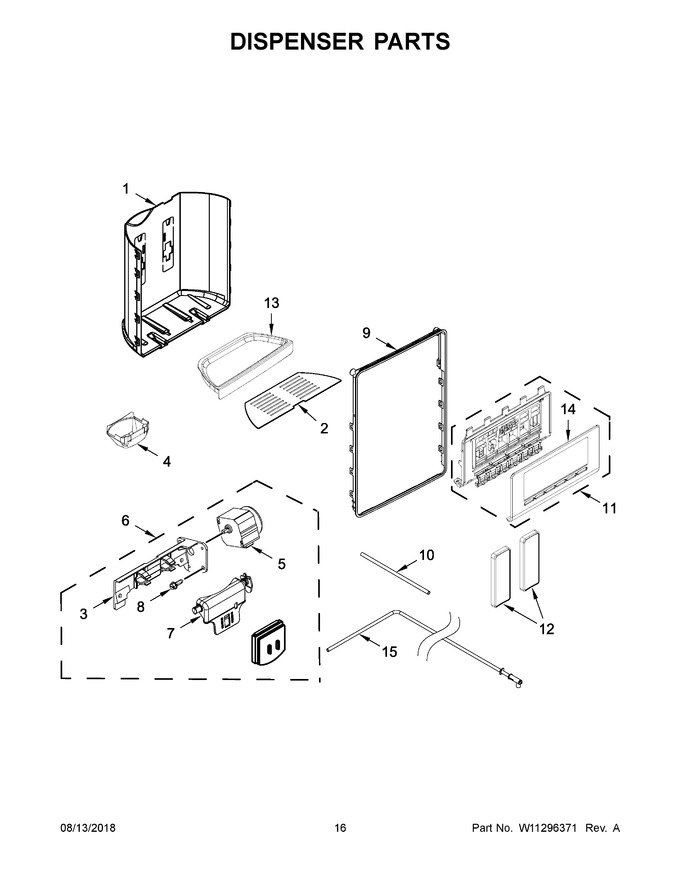

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11309262		Wall, Dispenser False (sunset Bronze)   (Replaces: W11084899)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W11098702		Assembly, Separator   (Replaces: W10781994)				$ 154.56
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W11087882		Ring, Trim (chromium Frost)				$ 70.05
10	W11619800		Tube, Water   (Replaces: W10876364)				$ 90.70
11	W11130216		Assembly, User Interface   (Replaces: W11038873)				$ 433.14
12	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 70.82
13	W11309268		Tray, Drip (sunset Bronze)   (Replaces: W11084898)		Appelez-nous	-
14	W10458867		Cover, Front (black)				$ 302.83
15	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 132.74
13A	W10276225		Tray, Drip (satina)				$ 74.06
1A	W10276226		Wall, Dispenser False (satina)				$ 141.15
