SELECT A DIAGRAM

01 - Cover Sheet

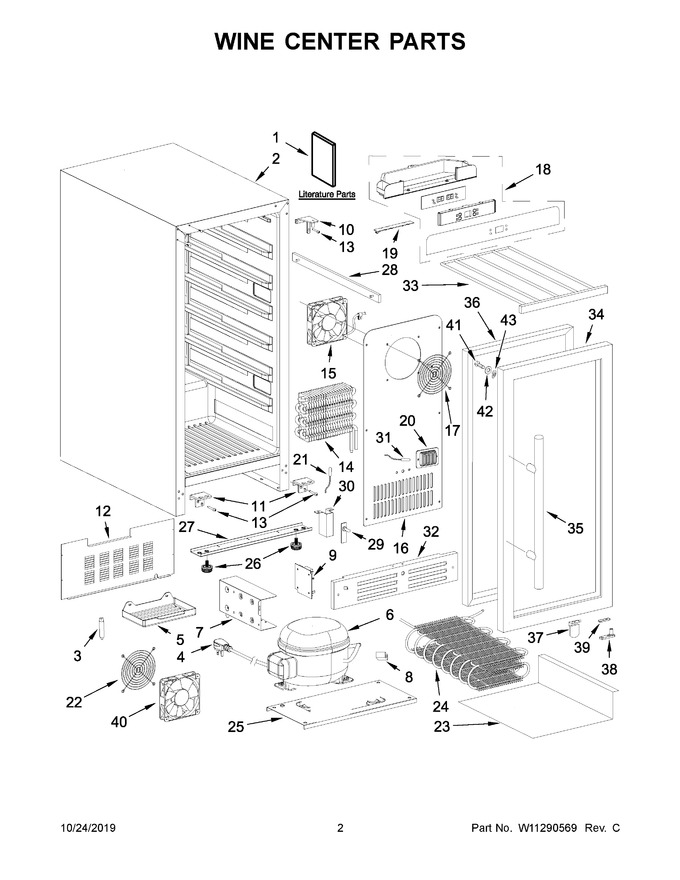

02 - Wine Center Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10739679		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	W11290639		Drier Filter				$ 28.69
4	W10782176		Power Cord		Appelez-nous	-
5	W11290643		Water Tray		Appelez-nous	-
6	W11290645		Compressor				$ 615.32
7	W11290646		Cover, Pcb		Appelez-nous	-
8	W11290662		Foam		Appelez-nous	-
9	W11298786		Main Pcb   (Replaces: W11290648)				$ 415.33
10	W10782193		Hinge, Upper Right				$ 76.87
11	W11243790		Hinge, Lower Right				$ 75.03
12	W11243799		Cover, Rear		Appelez-nous	-
13	W10782261		Screw		Appelez-nous	-
14	W10782280		Evaporator				$ 292.43
15	W10792631		Fan Assembly, Evaporator				$ 259.47
16	W10782281		Evaporator Cover		Appelez-nous	-
17	W10782263		Cover, Evaporator Fan		Appelez-nous	-
18	W11290655		Control Panel Assembly				$ 566.66
19	W10782293		Led Light		Appelez-nous	-
20	W10782222		Cover, Sensor		Appelez-nous	-
21	W11296649		Sensor (white Connector)				$ 125.23
22	W10782255		Cover, Condenser Fan		Appelez-nous	-
23	W11243800		Cover, Condenser		Appelez-nous	-
24	W10782289		Condenser				$ 308.43
25	W11290656		Baseplate		Appelez-nous	-
26	W10782249		Leg			Immediately	$ 17.81
27	W11244017		Support, Front				$ 91.62
28	W10782256		Slide, Rail		Appelez-nous	-
29	W10782243		Switch		Appelez-nous	-
30	W10782242		Support, Switch		Appelez-nous	-
31	W11290657		Sensor (red Connector)				$ 125.23
32	W11244018		Grille				$ 130.66
33	W11244034		Rack Assembly		Appelez-nous	-
34	W11431133		Door Assembly   (Replaces: W10782294)				$ 810.80
35	W10782266		Handle				$ 249.32
36	W10782286		Gasket, Door				$ 324.36
37	W10782267		Plate, Switch			Immediately	$ 92.91
38	W10782241		Axis, Door				$ 63.76
39	W11255595		Stop, Door				$ 76.46
40	W11678274		Fan Assembly, Condenser   (Replaces: W10782254)			Immediately	$ 312.34
41	W11104118		Screw			Immediately	$ 13.94
42	W11104122		Spring, Washer		Appelez-nous	-
43	W11104121		Washer		Appelez-nous	-
10A	W10782260		Hinge, Upper Left				$ 74.27
11A	W11243796		Hinge, Lower Left				$ 75.03
1A	W10792627		Energy Guide		Appelez-nous	-
NI	W10782192		Pin, Pcb		Appelez-nous	-
NI	W10782275		Starter		Appelez-nous	-
NI	W10782277		Overload Relay		Appelez-nous	-
NI	W10266810		Aluminum Tape			Immediately	$ 77.08
NI	N/P		Refrigerant Charge 0.98oz. R600a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
