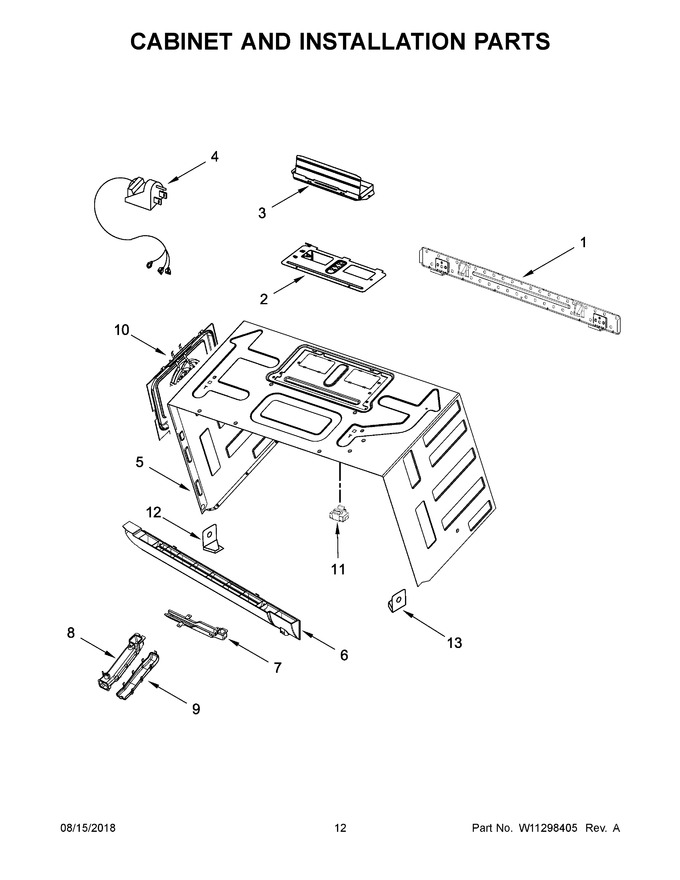

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 24.69 | ||||
| 2 | W10625423 | Cover, Fan Motor |
|
$ 69.87 | |||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 21.56 | |||||
| 5 | W11662678 | Case, Outer (black) (Replaces: W11178713) |
|
$ 212.92 | |||||
| 6 | W10701701 | Grille, Vent (black) |
|
$ 82.85 | |||||
| 7 | W10570212 | Air Duct, Turntable Motor |
|
- | |||||
| 8 | W10740434 | Duct, Cooling (upper) |
|
- | |||||
| 9 | W10533489 | Duct, Cooling (bottom) |
|
- | |||||
| 10 | W10665531 | Assembly, Convection Motor And Fan |
|
$ 357.23 | |||||
| 11 | W11122643 | Assembly, Mounting Nut |
|
Immediately | $ 14.36 | ||||
| 12 | W10830163 | Vent Holder, Left (black) (Replaces: W10703285) |
|
$ 14.21 | |||||
| 13 | W10810989 | Vent Holder, Right (black) (Replaces: W10703283) |
|
$ 10.22 | |||||
| NI | W10892377 | Insulation, Bottom |
|
- | |||||
| NI | W10737014 | Accessories, Plate, Door Baffle (heat Reflector) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10508747 | Miscellaneous Parts, Harness, Door Control Light Cable |
|
- | |||||
| NI | W10508741 | Miscellaneous Parts, Wire, Door Control Cable |
|
$ 23.57 | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 25.08 | |||||
| NI | W10877901 | Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor |
|
- | |||||
| NI | W11185442 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 13.35 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 7.55 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 103.72 | ||||
| NI | W10571453 | Insulation, Side |
|
- | |||||
| NI | W10571450 | Insulation, Back |
|
- | |||||
| NI | W10571451 | Insulation, Top |
|
- |
