01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

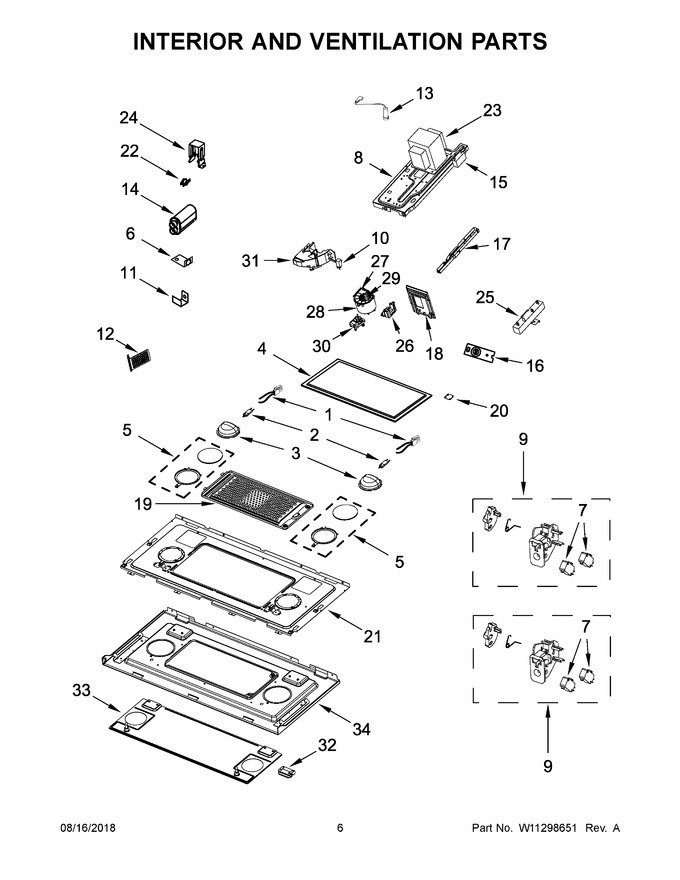

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10572351 | Wire, Cavity Lamp |
|
$ 27.42 | |||||
| 2 | W10709921 | Lamp, Halogen |
|
Immediately | $ 21.22 | ||||
| 3 | W10574986 | Shade, Lamp |
|
- | |||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W11430559 | Assembly, Lamp Glass (Replaces: W10666614) |
|
Immediately | $ 40.69 | ||||
| 6 | W10259248 | Cover, Thermostat |
|
- | |||||
| 7 | N/P | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 8 | W10908578 | Chassis |
|
- | |||||
| 9 | W11197766 | Assembly, Interlock (includes Switches) (Replaces: W11187757) |
|
Immediately | $ 36.80 | ||||
| 10 | W10458325 | Actuator |
|
$ 97.42 | |||||
| 11 | 8206223 | Clip |
|
$ 54.51 | |||||
| 12 | W10533486 | Valve, Door |
|
- | |||||
| 13 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 34.86 | ||||
| 14 | W10654462 | Capacitor, High Voltage |
|
Immediately | $ 51.02 | ||||
| 15 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 44.36 | |||||
| 16 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 38.68 | ||||
| 17 | W10540718 | Bracket, Cavity |
|
$ 32.61 | |||||
| 18 | W10533107 | Deflector, Air |
|
- | |||||
| 19 | W10614204 | Bracket, Filter |
|
- | |||||
| 20 | W10523009 | Pcba, Cavity Light Fade In Fade Out |
|
- | |||||
| 21 | W10614209 | Plate, Inner Bottom |
|
$ 235.86 | |||||
| 22 | W10599629 | Thermostat, Convection |
|
$ 35.84 | |||||
| 23 | W11371718 | Transformer, High Voltage (Replaces: W11087316) |
|
$ 375.00 | |||||
| 24 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 25 | W10568805 | Resistor, Cement |
|
$ 29.04 | |||||
| 26 | W10533480 | Holder, Ntc |
|
$ 24.77 | |||||
| 27 | W10533502 | Cover, Cooling Fan |
|
$ 26.49 | |||||
| 28 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 31.75 | ||||
| 29 | W10533503 | Wheel, Cooling Fan |
|
$ 34.14 | |||||
| 30 | W11230994 | Motor, Cooling Fan (Replaces: W11169357) |
|
Immediately | $ 201.13 | ||||
| 31 | W10631701 | Air Guide, Magnetron |
|
$ 123.49 | |||||
| 32 | W10574978 | Hinge, Panel |
|
$ 231.47 | |||||
| 33 | W10614213 | Panel, Perimetric (black) |
|
$ 296.32 | |||||
| 34 | W10614222 | Plate, Outer Bottom |
|
$ 262.24 |
