Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10275154 Energy Guide Appelez-nous -
1 W10275146 Use & Care Guide (english/french) Appelez-nous -
1 W10275147 Use & Care Guide (spanish) Appelez-nous -
1 W10292953 Tech Sheet (english) Appelez-nous -
1 W10292970 Tech Sheet (french) Appelez-nous -
1 W10142914 Instructions, Installation Appelez-nous -
2 W11613572 Arm, Hinge (right Hand)   (Replaces: W10143373) In-Stock Immediately $ 83.93

2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10143374) In-Stock Immediately $ 71.77

3 8268983 Brace, Door Cross Special Order $ 38.77

4 W10274900 Panel Front (stainless) Special Order $ 152.48

4 WPW10274890 Panel Front (black)   (Replaces: W10274890) Special Order $ 358.95

4 W10274891 Panel Front (white) Special Order $ 133.14

4 W10274892 Panel Front (biscuit/bisque) Appelez-nous -
4 W10274893 Panel Front (universal Silver) Special Order $ 242.48

5 W10871198 Access Panel (biscuit/bisque)   (Replaces: W10195779) Special Order $ 161.50

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

5 WPW10441007 Access Panel (white)   (Replaces: W10195778) Special Order $ 170.94

6 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

7 3400865 Screw (biscuit/bisque) Special Order $ 14.07

7 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

7 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

8 WP681414 Screw   (Replaces: 343641) In-Stock Immediately $ 8.47

9 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

10 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

11 WP8573287 Toe Panel (white)   (Replaces: 8573287) Special Order $ 177.69

11 8573288 Toe Panel (biscuit/bisque) Special Order $ 67.15

11 W10871196 Toe Panel (black)   (Replaces: 8573286) Special Order $ 174.04

12 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21


    View Diagram in Separate Window     Print Icon   Print Part List

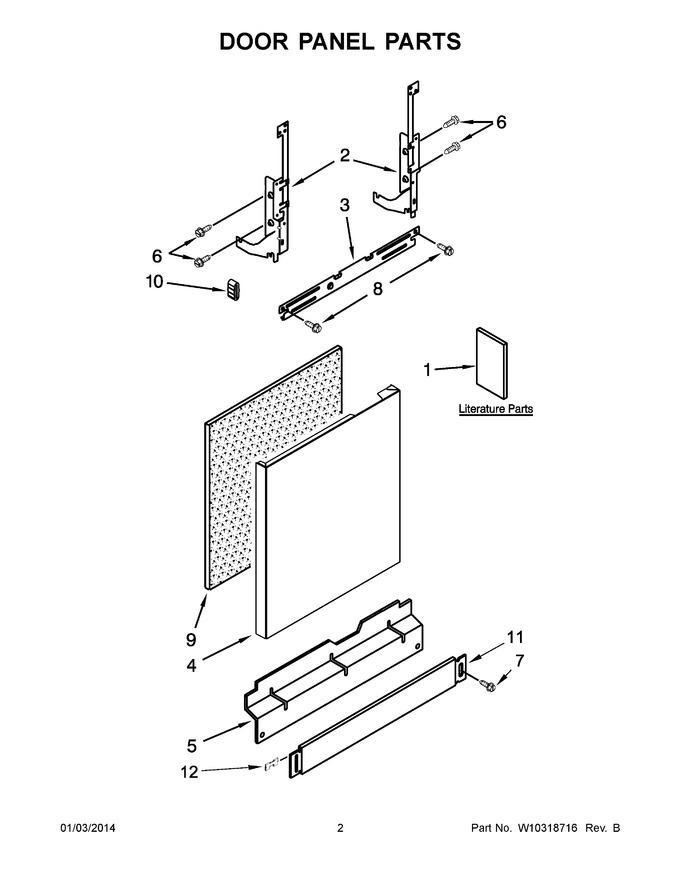

Diagram for DU1015XTXT1
