01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

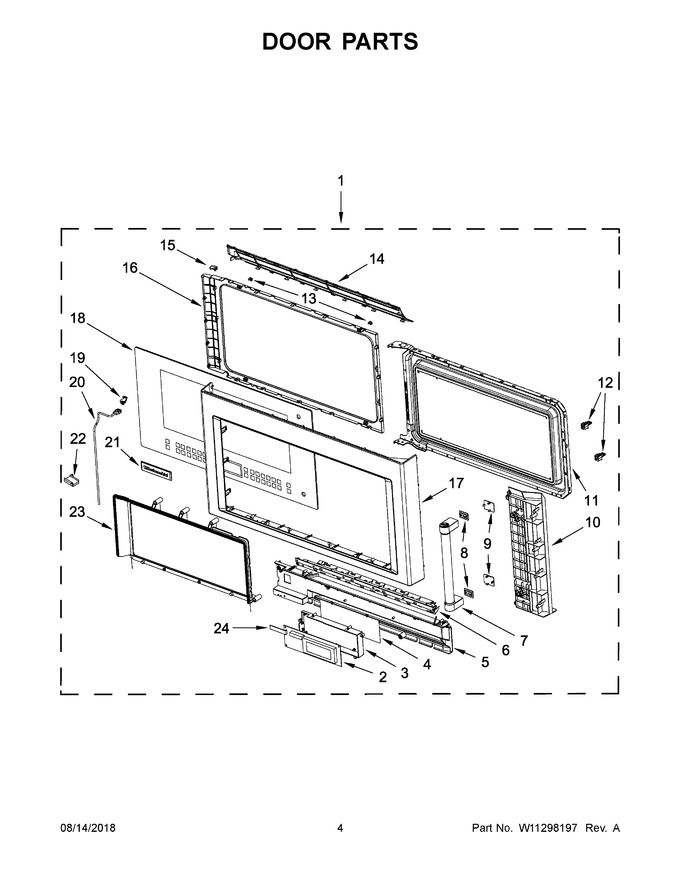

| 1 | W11205133 | Door, Complete (stainless) |
|
- | |||||
| 2 | W11257256 | Pcba, User Interface (Replaces: W11202856) |
|
- | |||||
| 3 | W10770970 | Holder, Ui |
|
- | |||||
| 4 | W10540298 | Plate, Ui Insulation |
|
- | |||||
| 5 | W10617743 | Cover, Ui |
|
- | |||||
| 6 | W10476546 | Bracket, Door |
|
- | |||||
| 7 | W10604264 | Assembly, Handle |
|
$ 293.41 | |||||
| 8 | W11590575 | Cushion, Handle (Replaces: W10540736) |
|
$ 23.59 | |||||
| 9 | W10478657 | Cover, Screw (black) |
|
Immediately | $ 22.46 | ||||
| 10 | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 86.18 | |||||
| 11 | W11045518 | Body, Door (with Glass) (Replaces: W10891969) |
|
$ 247.05 | |||||
| 12 | W10740455 | Hook, Door |
|
Immediately | $ 56.20 | ||||
| 13 | W10542546 | Cover, Screw |
|
$ 88.82 | |||||
| 14 | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 15 | W10643448 | Stopper, Door |
|
$ 23.06 | |||||
| 16 | W10897612 | Frame, Inner |
|
$ 149.03 | |||||
| 17 | W10688550 | Assembly, Door Frame (stainless) |
|
$ 443.52 | |||||
| 18 | W10861353 | Glass, Door |
|
$ 320.40 | |||||
| 19 | W10770972 | Holder, Door Cable |
|
- | |||||
| 20 | W10508745 | Wire, Door Control Cable |
|
$ 29.00 | |||||
| 21 | W10909682 | Badge (stainless) (Replaces: W10518673) |
|
Immediately | $ 76.20 | ||||
| 22 | W10770971 | Bracket, Door Cable |
|
- | |||||
| 23 | W10478647 | Plate, Steam Protection |
|
$ 96.76 | |||||
| 24 | W10509362 | Cable, Touch Sensor |
|
- |
