SELECT A DIAGRAM

01 - Cover Sheet

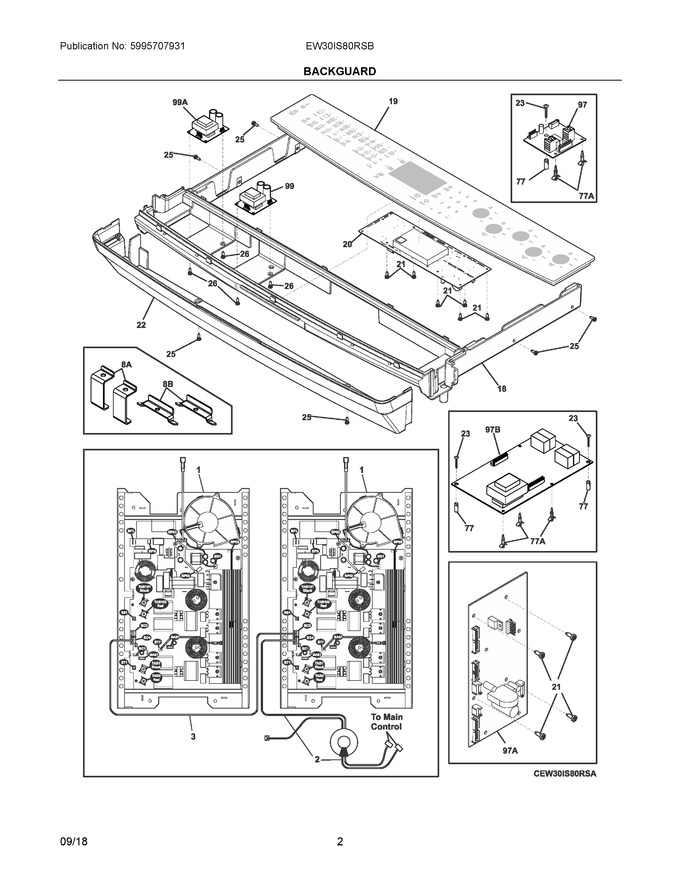

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903160-9010		Housing Assembly, Induction, Generator, W/electronics   (Replaces: 318416100)			Immediately	$ 909.37
2	5304517795		Harness, Wiring, Communication, W/magnetic Core   (Replaces: 318578348)				$ 125.55
3	5304517795		Harness, Wiring, Communication   (Replaces: 5304496625)				$ 125.55
18	318900304		Subframe, Control		Appelez-nous	-
19	318387122		Control Assembly, Glass, Black, W/interface				$ 839.39
20	316576687		Controller, Electronic, Es630			Immediately	$ 479.91
21	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel, Service, Stainless				$ 500.35
23	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
25	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
26	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
77	316247900		Spacer, Power Board				$ 49.61
97	316519200		Board, Variable Speed, Triac			Immediately	$ 284.71
99	316535201		Board, Power Supply, 8v				$ 388.24
77A	316114100		Spacer				$ 67.73
8A	318403105		Bracket, Bridge, (2)   (Replaces: 318403100)				$ 55.13
8B	318403202		Bracket, Service Panel, (2)				$ 17.69
97A	316201101		Board, Power, Uib				$ 333.80
97B	316443916		Board, Relay			Immediately	$ 492.75
99A	316435703		Board, Power Supply			Immediately	$ 438.31
NI	5304517823		Harness, Wiring, Communication, Es630   (Replaces: 5304503248)				$ 147.26
NI	5303325170		Nut, Keps, 8-32, (2)		Appelez-nous	-
NI	5304520761		Harness, Wiring, Generator   (Replaces: 807616506)				$ 74.81
NI	5303317179		Screw, 6-20 X 3/4				$ 2.42
NI	5304517820		Harness, Wiring, Power Supply   (Replaces: 5304499693)				$ 72.45
NIA	318534402		Gasket, Maintop, Black				$ 107.27

    View Diagram in Separate Window       Print Part List
