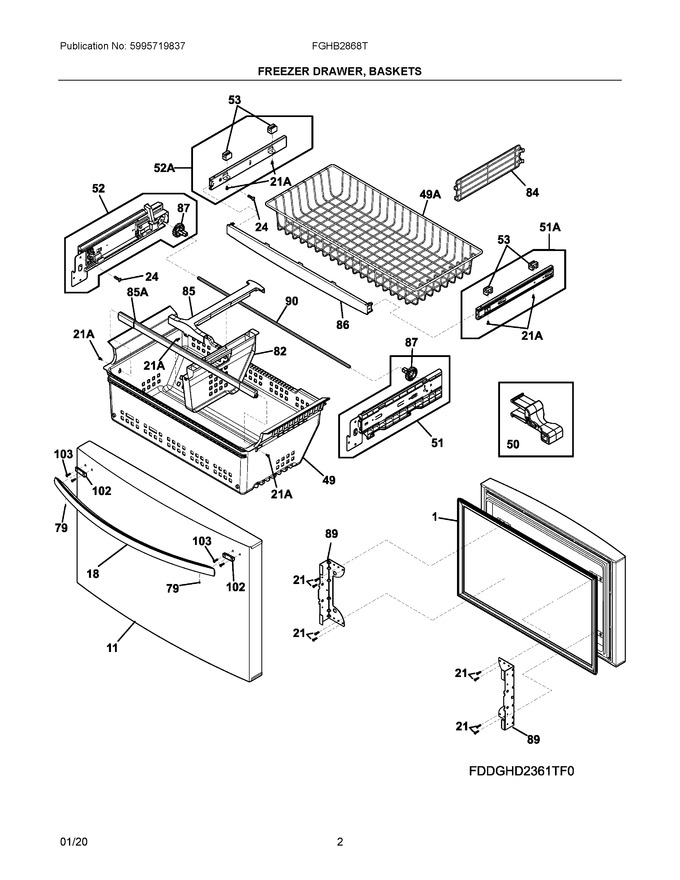

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket-frzr Drawer, White (Replaces: 5304502761) |
|
Immediately | $ 95.87 | ||||
| 11 | 241987972 | Drawer, Freezer Wht |
|
$ 328.59 | |||||
| 18 | 242029402 | Handle-door, White |
|
$ 173.57 | |||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
$ 11.81 | |||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 12.71 | |||||
| 49 | 5304525892 | Basket-frzr, Lower (Replaces: 5304508733) |
|
Immediately | $ 200.71 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 17.33 | ||||
| 51 | 5304507978 | Slide Assembly, Basket Lower, Rh, W/pinion |
|
Immediately | $ 284.81 | ||||
| 52 | 5304507979 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 276.70 | ||||
| 53 | 5304508271 | Retainer, Basket, Upper |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 82 | 5304503705 | Divider, Basket, Lower |
|
$ 131.51 | |||||
| 84 | 241780909 | Divider, Basket, Upper |
|
$ 87.41 | |||||
| 85 | 242130901 | Hanger, Basket, Lower |
|
$ 101.96 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer |
|
Immediately | $ 50.61 | ||||
| 87 | 5304507999 | Pinion |
|
$ 11.80 | |||||
| 89 | 5304509676 | Bracket, Freezer Drawer, (2) |
|
$ 85.95 | |||||
| 90 | 241770705 | Bar, Timing (Replaces: 241770702) |
|
$ 56.29 | |||||
| 102 | 5304504279 | Block-handle Mtg |
|
Immediately | $ 20.56 | ||||
| 103 | 242077302 | Screw, #10 Ab Flat Hd |
|
Immediately | $ 8.66 | ||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 49A | 241780825 | Basket-frzr, Upper |
|
$ 262.54 | |||||
| 51A | 5304508096 | Slide Assembly, Freezer Basket, Upper Rh |
|
Immediately | $ 155.88 | ||||
| 52A | 5304508097 | Slide Assembly, Freezer Basket, Upper Lh |
|
Immediately | $ 159.25 | ||||
| 85A | 242139301 | Support-beam, Divider, Lower Basket |
|
$ 81.90 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 15.86 | ||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| NIA | 242139201 | Spring-compression, Divider, Lower Basket |
|
$ 21.91 | |||||
| NIA | 242011101 | Pin-lock |
|
$ 16.85 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.73 | |||||
| NIAA | 242039701 | Screw, Basket Slides |
|
$ 14.96 |
