01 - Cover Sheet

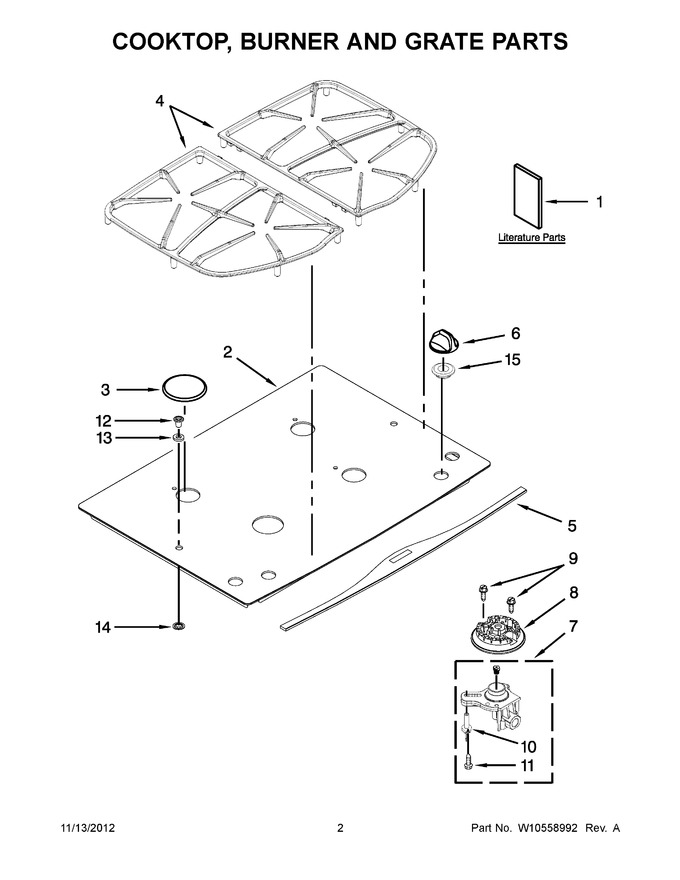

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switches
04 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203804 | Installation Instructions |
|
- | |||||
| 2 | W10204896 | Cooktop (black) |
|
- | |||||
| 3 | WP8284669 | Cap, Burner (black (left Front)) (Replaces: 7504P202-60) |
|
Immediately | $ 75.59 | ||||
| 4 | 7518P456-60 | Grate, Left |
|
$ 159.48 | |||||
| 5 | W10168877 | Trim, Cooktop (ss Model Only) (stainless (front)) |
|
$ 117.19 | |||||
| 6 | WPW10168628 | Knob, Control (Replaces: W10168628) |
|
$ 64.79 | |||||
| 7 | 7527P118-60 | Holder, Orifice 5k (left Front) |
|
- | |||||
| 8 | 7505P339-60 | Assembly, Burner Auxiliary (left Front) |
|
$ 57.66 | |||||
| 9 | WP3368921 | Screw-burner Head (Replaces: 7101P685-60) |
|
Immediately | $ 8.56 | ||||
| 10 | WP74009336 | Ignitor (Replaces: 7432P121-60) |
|
Immediately | $ 28.34 | ||||
| 11 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.91 | ||||
| 12 | 8008P064-60 | Grommet, Grate |
|
- | |||||
| 13 | 7109P081-60 | Washer |
|
- | |||||
| 14 | 7114P008-60 | Ring, Retaining |
|
- | |||||
| 15 | WP8008P071-60 | Grommet (Replaces: 8008P071-60) |
|
$ 9.36 | |||||
| 1A | W10204447 | Use & Care Guide |
|
- | |||||
| 1B | W10210794 | Diagram, Wiring |
|
- | |||||
| 1C | 9762761 | Tips, Safer Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | WPW10204898 | Cooktop (frost White) (Replaces: W10204898) |
|
$ 500.38 | |||||
| 3A | 7504P165-60 | Cap, Burner (black (left Rear & Right Rear)) |
|
- | |||||
| 3B | 7504P204-60 | Cap, Burner (black (right Front)) |
|
- | |||||
| 4A | 7518P457-60 | Grate, Right |
|
$ 153.39 | |||||
| 5A | W10168883 | Trim, Cooktop (ss Model Only) (stainless (rear)) |
|
$ 56.79 | |||||
| 7A | WP7527P119-60 | Holder, Orifice 10.5k (left Rear) (Replaces: 7527P119-60) |
|
$ 93.90 | |||||
| 7B | 7527P116-60 | Holder, Orifice 15k (right Front) |
|
$ 141.96 | |||||
| 7C | 7527P117-60 | Holder, Orifice 9.2k (right Rear) |
|
- | |||||
| 8A | 74007735 | Assembly, Burner (left Rear & Right Rear) (Replaces: 7505P305-60) |
|
Immediately | $ 147.25 | ||||
| 8B | 74007736 | Assembly, Burner (right Front) (Replaces: 7505P306-60) |
|
Immediately | $ 117.07 |
