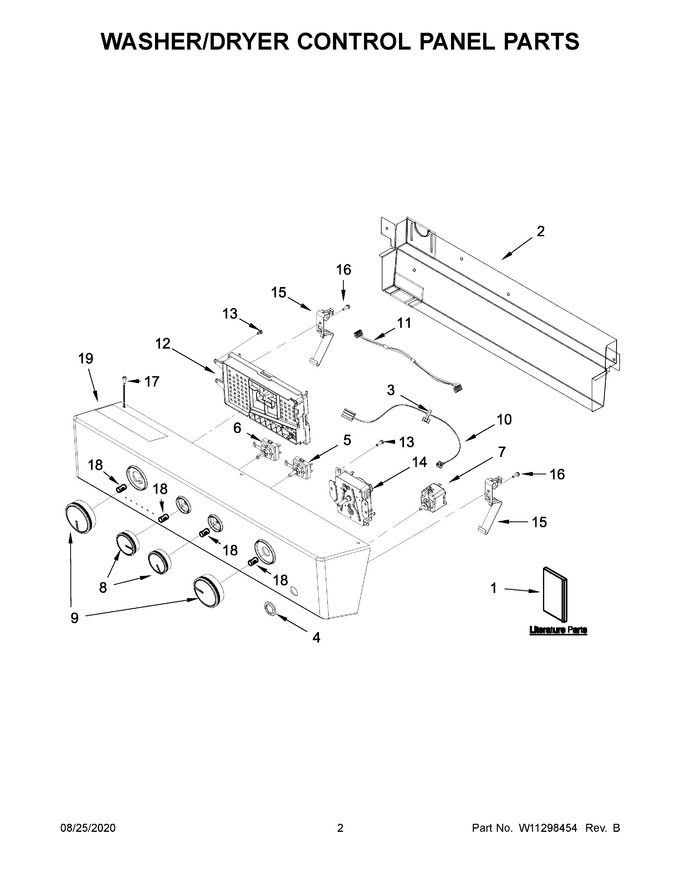

02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Top And Cabinet Parts


08 - Basket And Tub Parts


09 - Gearcase, Motor And Pump Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11028710		Use And Care Guide		Appelez-nous	-
2	W11040441		Shield, Console		Appelez-nous	-
3	W10210799		Clip, Harness		Appelez-nous	-
4	W11049351		Button				$ 70.91
5	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 188.32
6	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
7	WPW10563095		Switch, Rotary (push To Start)   (Replaces: W10563095)			Immediately	$ 89.50
8	W10576636		Knob, Assembly (white/metallic)		Appelez-nous	-
9	W11501455		Knob, Assembly (white/metallic)   (Replaces: W10576634)				$ 45.78
10	W11028056		Harness, Wire				$ 176.39
11	W10694669		Harness, Jumper				$ 85.10
12	W11629601		Control Unit Assembly, Machine And Motor   (Replaces: W11104057)			Immediately	$ 333.77
13	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
14	W11409801		Timer, Dryer   (Replaces: W10642932)				$ 376.67
15	3389453		Bracket, Hinge				$ 91.07
16	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
17	W11590579		Screw   (Replaces: W10794806)				$ 14.73
18	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
19	W11364933		Console   (Replaces: W11093252)		Appelez-nous	-
1A	W11082888		Tech Sheet		Appelez-nous	-
1B	W11129508		Energy Guide		Appelez-nous	-
1C	W11097402		Wiring Diagram		Appelez-nous	-
