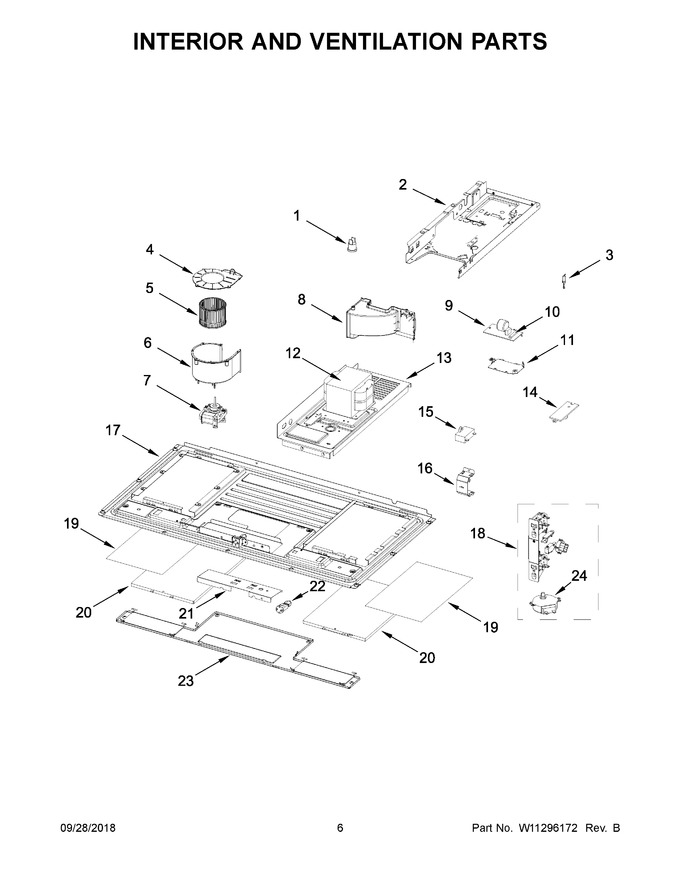

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213317		Thermostat, Cavity   (Replaces: W11125677)				$ 92.22
2	W11086279		Plate, Chassis		Appelez-nous	-
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W11752349		Cover, Cooling Fan   (Replaces: W11088345)				$ 28.34
5	W11088354		Wheel, Cooling Fan			Immediately	$ 100.03
6	W11213349		Housing, Cooling Fan   (Replaces: W11088352)				$ 81.13
7	W11443154		Motor, Cooling Fan   (Replaces: W10920843)			Immediately	$ 93.05
8	W11088358		Air Guide, Magnetron		Appelez-nous	-
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 56.88
10	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
11	W10313274		Bracket, Noise Filter				$ 32.32
12	W11024976		Transformer, High Voltage			Immediately	$ 213.23
13	W11086286		Chassis, Transformer		Appelez-nous	-
14	W10536989		Thermistor, Pcba			Immediately	$ 38.68
15	W11213318		Capacitor, High Voltage   (Replaces: W11196080)				$ 192.01
16	W11095808		Bracket, Capacitor		Appelez-nous	-
17	W11159942		Plate, Bottom			Immediately	$ 146.71
18	W11449274		Assembly, Interlock (includes Switches)   (Replaces: W11255493)			Immediately	$ 77.70
19	W11282981		Filter, Charcoal   (Replaces: W11223147)			Immediately	$ 22.75
20	W11213913		Filter, Grease   (Replaces: W11206152)			Immediately	$ 37.88
21	W11086295		Reflector, Lamp				$ 78.51
22	W10709921		Lamp, Halogen			Immediately	$ 21.22
23	W11206153		Assembly, Glass Holder				$ 142.31
24	W11545873		Motor, Door Eject   (Replaces: W11044953)			Immediately	$ 42.71
