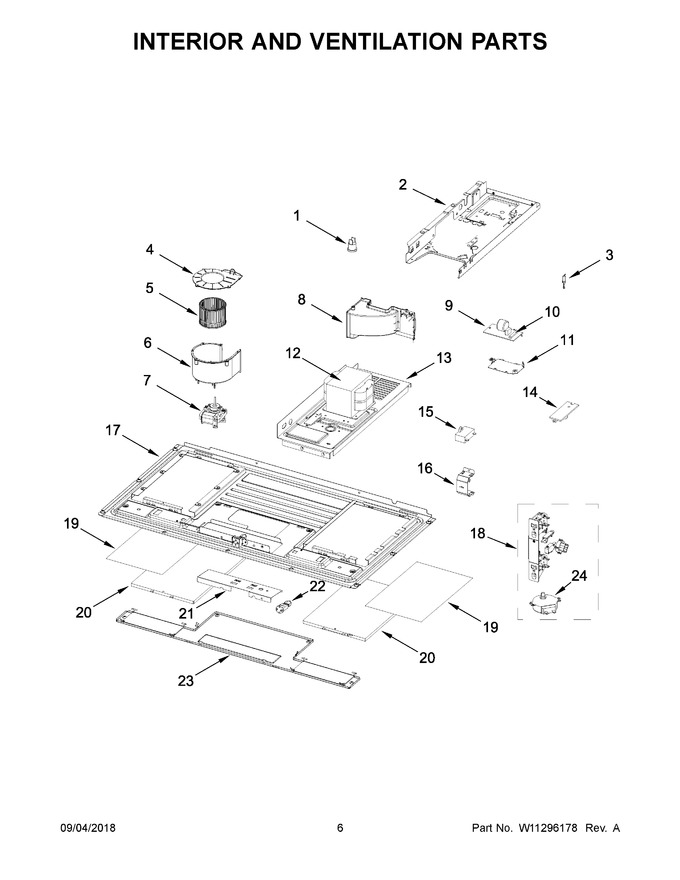

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213317		Thermostat, Cavity   (Replaces: W11125677)				$ 87.83
2	W11086279		Plate, Chassis		Appelez-nous	-
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W11752349		Cover, Cooling Fan   (Replaces: W11088345)				$ 26.99
5	W11088354		Wheel, Cooling Fan			Immediately	$ 95.27
6	W11213349		Housing, Cooling Fan   (Replaces: W11088352)				$ 77.27
7	W11443154		Motor, Cooling Fan   (Replaces: W10920843)			Immediately	$ 88.62
8	W11088358		Air Guide, Magnetron		Appelez-nous	-
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 54.17
10	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
11	W10313274		Bracket, Noise Filter				$ 30.78
12	W11024976		Transformer, High Voltage			Immediately	$ 203.08
13	W11086286		Chassis, Transformer		Appelez-nous	-
14	W10536989		Thermistor, Pcba			Immediately	$ 36.84
15	8206562		Capacitor, High Voltage			Immediately	$ 120.92
16	W11095808		Bracket, Capacitor		Appelez-nous	-
17	W11159942		Plate, Bottom			Immediately	$ 139.72
18	W11449274		Assembly, Interlock (includes Switches)   (Replaces: W11255493)			Immediately	$ 77.70
19	W11213882		Filter, Charcoal   (Replaces: W11121131)			Immediately	$ 35.19
20	W11213913		Filter, Grease   (Replaces: W11206152)			Immediately	$ 37.88
21	W11086295		Reflector, Lamp				$ 74.77
22	W10709921		Lamp, Halogen			Immediately	$ 21.22
23	W11206153		Assembly, Glass Holder				$ 135.53
24	W11545873		Motor, Door Eject   (Replaces: W11044953)			Immediately	$ 42.71
