View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

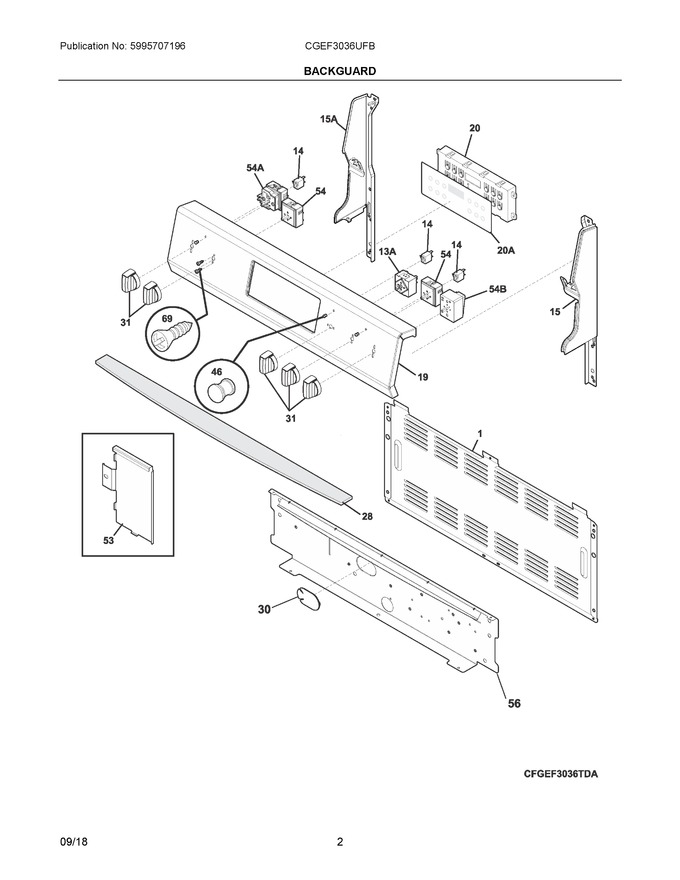

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall (Replaces: 316281801) |
|
$ 64.04 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 59.52 | ||||
| 15 | 5304493644 | Cap, End, Black, Rh |
|
$ 74.15 | |||||
| 19 | 5304510018 | Panel Backguard, Stainless |
|
$ 312.17 | |||||
| 20 | 5304511270 | Clock, Es300isb |
|
Immediately | $ 433.60 | ||||
| 28 | 316528700 | Insulation, Manifold Panel |
|
$ 99.23 | |||||
| 30 | 316577600 | Plug, Button, Oval, Harness |
|
$ 16.54 | |||||
| 31 | 5304509063 | Knob, Stainless |
|
$ 66.68 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 18.63 | ||||
| 53 | 316355000 | Shield, Flue, Inner |
|
- | |||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 89.27 | ||||
| 56 | 316234045 | Shield, Backguard, Black, Inner |
|
$ 74.15 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.47 | |||||
| 13A | 5304508926 | Switch, Infinite, Warmer |
|
Immediately | $ 93.53 | ||||
| 15A | 5304493646 | Cap, End, Black, Lh |
|
Immediately | $ 74.15 | ||||
| 20A | 316419378 | Overlay, Clock, Black, Es334isb |
|
$ 26.96 | |||||
| 54A | 5304516192 | Switch, Hyper Element |
|
$ 92.80 | |||||
| 54B | 316238202 | Switch, Infinite Radian, Dual |
|
Immediately | $ 142.75 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 |
