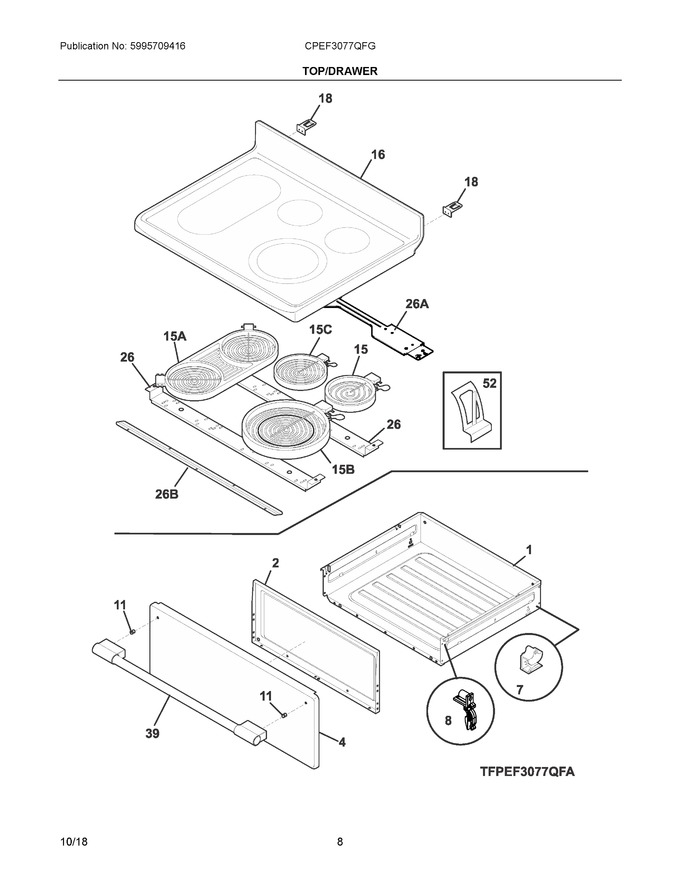

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408707)			Immediately	$ 122.90
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 32.03
4	5304511907		Panel, Drawer, Stainless, Outer				$ 78.70
7	316407402		Glide, Drawer, Rear			Immediately	$ 10.95
8	5304490938		Glide, Drawer, Front			Immediately	$ 16.01
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 14.18
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304513627		Top, Black				$ 501.36
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304512926		Channel, Element Support				$ 51.35
39	5304494423		Handle, Asm			Immediately	$ 349.65
52	316461700		Clip, Element Mtg				$ 13.39
15A	316280701		Element, Double 7", Surface, 4400w, W/bridge				$ 303.71
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 314.48
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)				$ 39.74
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
26B	316607600		Bracket, Chassis Support, Front				$ 58.14
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 14.32
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53
