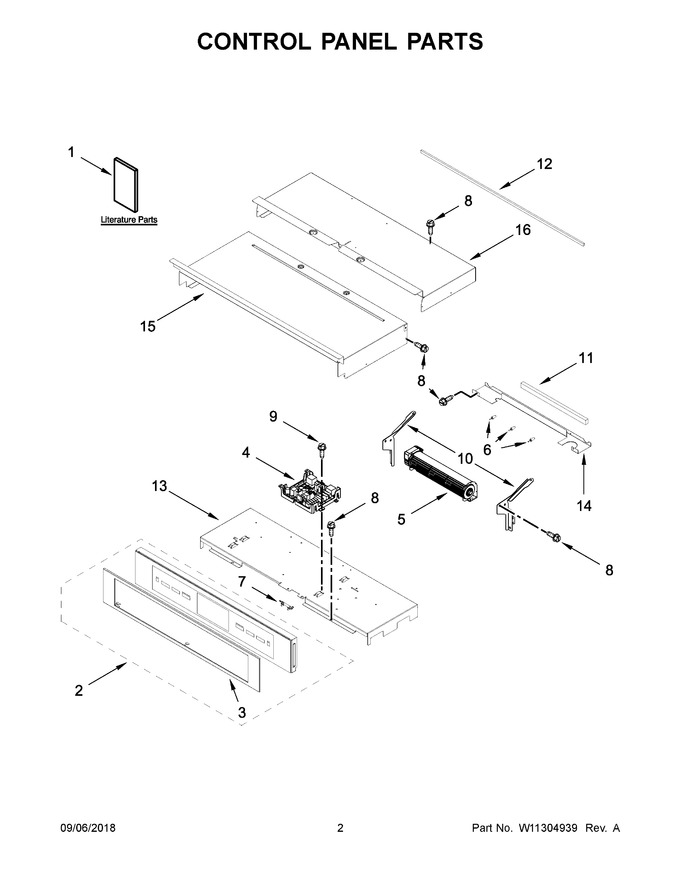

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754335		Guide, Use & Care (oven)		Appelez-nous	-
2	W11236888		Assembly, Control Panel (stainless)   (Replaces: W11102216)				$ 1,481.27
3	W10444132		Skin, Control Panel (stainless)				$ 303.50
4	W11179310		Control (with Power Supply)   (Replaces: W11040195)			Immediately	$ 456.49
5	W11713858		Blower, Dual Speed   (Replaces: W11200130)			Immediately	$ 348.59
6	W10351295		Bumper				$ 22.12
7	W11610133		Fuse, Thermal   (Replaces: W10782120)			Immediately	$ 30.82
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10728475		Gasket, Rubber				$ 38.13
13	W10864102		Tray, Electronic				$ 67.13
14	W10655465		Chassis, Back Divider		Appelez-nous	-
15	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
16	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10768183		Instructions, Installation		Appelez-nous	-
1B	W11041085		Sheet, Tech		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W11132989		Harness, Door Latch				$ 118.98
NI	W11132991		Harness, Signal		Appelez-nous	-
NI	W11132995		Harness, Main		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 40.71
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W11229447		Jumper Tod		Appelez-nous	-
