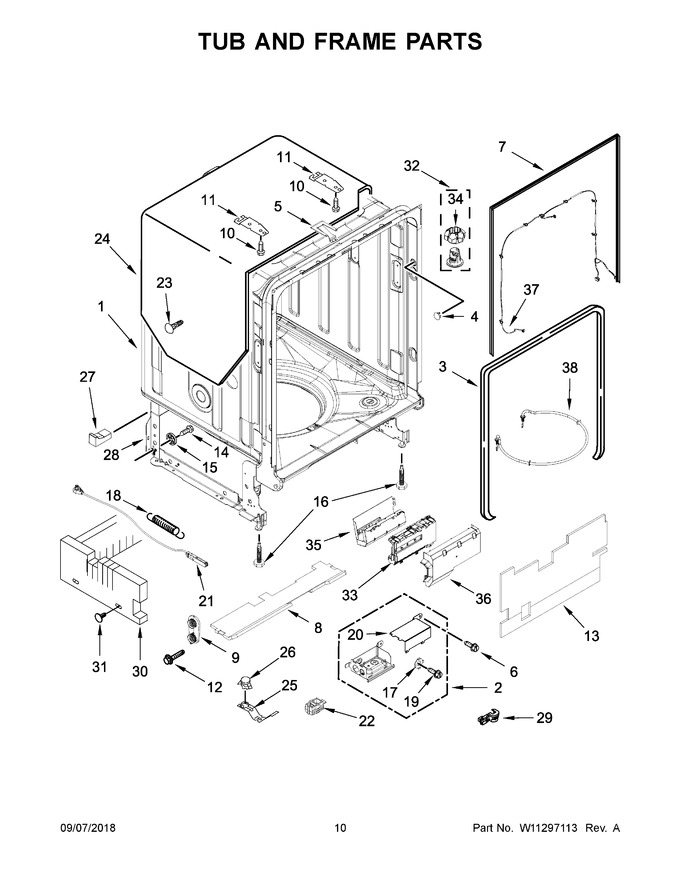

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10772193 | Tub Assembly (Replaces: W10772191) |
|
$ 660.56 | |||||
| 2 | W11167239 | Assembly, Terminal Box (Replaces: W10713315) |
|
$ 32.45 | |||||
| 3 | W11177741 | Gasket, Tub (Replaces: W10660528) |
|
Immediately | $ 77.43 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10813122) |
|
Immediately | $ 15.06 | ||||
| 5 | WPW10544004 | Strike, Latch (Replaces: W10544004) |
|
Immediately | $ 45.69 | ||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | W10864081 | Seal, Cabinet (Replaces: W10835073) |
|
Immediately | $ 84.31 | ||||
| 8 | W11747584 | Sound Insulation, Bottom (Replaces: W10746772) |
|
Immediately | $ 28.63 | ||||
| 9 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 33.02 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 13 | W10380173 | Sound Insulator, Bottom |
|
$ 37.96 | |||||
| 14 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 10.82 | |||||
| 15 | WPW10190778 | Wheel Leg (Replaces: W10190778) |
|
Immediately | $ 14.87 | ||||
| 16 | 8193716 | Leveler, Leg (Replaces: W10619352) |
|
Immediately | $ 88.96 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 19 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 20 | W10847918 | Cover, Terminal Box (Replaces: W10653292) |
|
$ 31.43 | |||||
| 21 | 8194001 | Cable, Door (Replaces: W10158291) |
|
Immediately | $ 43.06 | ||||
| 22 | W10292870 | Shield, Thermostat |
|
$ 24.62 | |||||
| 23 | WP304666 | Retainer (Replaces: 304666) |
|
$ 29.45 | |||||
| 24 | W10877094 | Shield, Tub Sound (Replaces: W10866980) |
|
$ 233.63 | |||||
| 25 | W10300703 | Bracket, Thermostat |
|
$ 20.49 | |||||
| 26 | WPW10195091 | Thermostat (Replaces: W10195091) |
|
Immediately | $ 36.97 | ||||
| 27 | W10195630 | Spacer, Tub/brace (left Hand) |
|
$ 17.31 | |||||
| 28 | WPW10681564 | Support Assembly, Rear (Replaces: W10681564) |
|
$ 75.31 | |||||
| 29 | W10337661 | Strain Relief |
|
$ 7.59 | |||||
| 30 | W10750120 | Insulation, U-wrap |
|
Immediately | $ 44.18 | ||||
| 31 | WPW10486051 | Retainer (Replaces: W10486051) |
|
$ 19.26 | |||||
| 32 | W10791989 | Lens, Light Assembly (Replaces: W10734875) |
|
$ 75.40 | |||||
| 33 | W11368634 | Control, Electronic (Replaces: W11100744) |
|
$ 264.00 | |||||
| 34 | W10796085 | Nut, Retainer (Replaces: W10610790) |
|
$ 45.70 | |||||
| 35 | W10642756 | Bracket, Control Mount |
|
- | |||||
| 36 | W10740187 | Cover, Control |
|
- | |||||
| 37 | W10808286 | Harness, Tub Lights |
|
$ 31.79 | |||||
| 38 | W10703867 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces: W10696509) |
|
Immediately | $ 126.95 | ||||
| 27A | W10195631 | Spacer, Tub/brace (right Hand) |
|
$ 17.19 |
