SELECT A DIAGRAM
01 - Cover Sheet

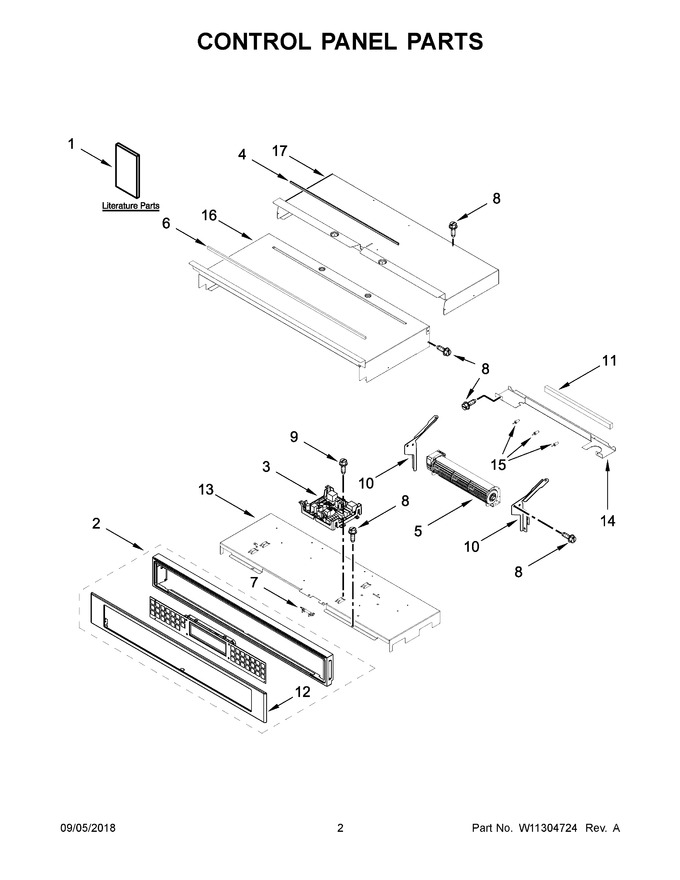

02 - Control Panel Parts
03 - Oven Parts
04 - Lower Oven Door Parts
05 - Upper Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643471 | Guide, Use & Care |
|
- | |||||
| 2 | W10916758 | Assembly, Controlpanel (includes Overlay) (stainless) (Replaces: W10890581) |
|
- | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 456.49 | ||||
| 4 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 348.59 | ||||
| 6 | W11226313 | Gasket, Rubber (Replaces: W11162062) |
|
$ 24.40 | |||||
| 7 | W11610133 | Fuse, Thermal (Replaces: W10782120) |
|
Immediately | $ 30.82 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588741 | Skin, Control Panel (stainless) |
|
$ 241.78 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W10318193 | Chassis, Cover Top Front 27 |
|
$ 136.08 | |||||
| 17 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10725670 | Instructions, Installation |
|
- | |||||
| 1B | W11041061 | Sheet, Tech |
|
- | |||||
| 3A | W10801665 | Control (without Power Supply) (Replaces: W10777216) |
|
Immediately | $ 444.64 | ||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W11177679 | Harness, Tod Jumper |
|
$ 201.19 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 | |||||
| NI | W11157219 | Harness, Signal |
|
- | |||||
| NI | W11136134 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10431304) |
|
$ 12.17 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 |
